EV HTF Bias Dashboard — Multi-timeframe bias in one view

A clean, configurable dashboard that shows trend, momentum, structure, volume and alignment status across 6 timeframes at once, plus a consolidated overall bias. Drop it on any chart and you have the full multi-timeframe picture without opening 6 separate indicators.

==================================================

WHAT IT DOES

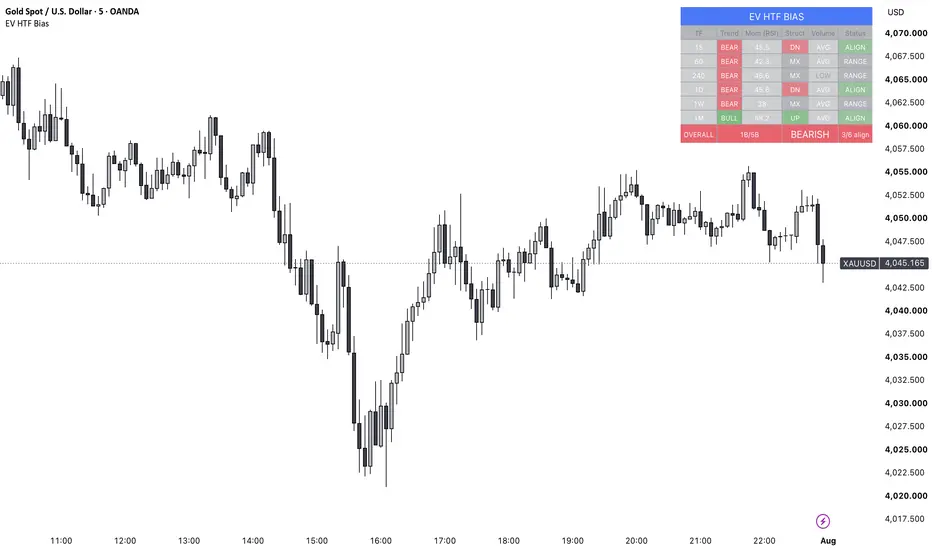

EV HTF Bias Dashboard pulls 6 configurable timeframes, computes 5 metrics per timeframe in real time, and lays them out in a single table you can position anywhere on the chart. At the bottom of the table, an OVERALL row shows you the consensus: how many timeframes are bullish, how many are bearish, and whether everything is aligned or there is conflict.

Designed for traders who want the multi-timeframe context at a glance instead of flipping through 6 charts.

==================================================

THE 5 METRICS PER TIMEFRAME

1. TREND
Based on close vs the fast EMA.
- BULL : close above the fast EMA
- BEAR : close below the fast EMA
- FLAT : equal (rare)

2. MOMENTUM (RSI)
RSI value with color coding.
- White : neutral zone
- Green : oversold (potential bounce)
- Red : overbought (potential pullback)

3. STRUCTURE
Based on the alignment of price against 3 EMAs (fast / mid / slow).
- UP : close > fast EMA > mid EMA > slow EMA (full bullish stack)
- DN : close < fast EMA < mid EMA < slow EMA (full bearish stack)
- MX : mixed alignment (transition or chop)

4. VOLUME
Current volume relative to its moving average.
- SPIKE : above your spike threshold (default 2x MA)
- HIGH : above 1.5x MA
- AVG : between 0.7x and 1.5x MA
- LOW : below 0.7x MA

5. STATUS
Combined verdict for that timeframe.
- ALIGN : trend and structure agree, RSI not extreme
- CONFL : trend and structure disagree
- RANGE : one of them is flat, no clear direction
- REVERS : trend up but RSI overbought, or trend down but RSI oversold (potential reversal warning)

==================================================

THE OVERALL ROW

A summary cell that aggregates all 6 timeframes:
- Bull vs Bear count (e.g. 4B/2B)
- Overall bias label: BULLISH, BEARISH, or MIXED
- Aligned count: how many of the 6 TFs have all 5 metrics in agreement (ALIGN status)

When the OVERALL row is BULLISH AND aligned count is 5/6 or 6/6, you have maximum confluence. That is when your other EV Labs tools (Order Blocks, FVGs, Liquidity Sweeps) become highest-probability setups.

==================================================

KEY INPUTS

Timeframes (6 rows, smallest to largest):
- Default: 15m, 1H, 4H, 1D, 1W, 1M
- Editable to anything Pine supports

Metric Settings:
- EMA Fast : default 20 (drives Trend)
- EMA Mid : default 50 (part of Structure)
- EMA Slow : default 200 (part of Structure)
- RSI Length: default 14
- Volume MA : default 20
- Volume Spike threshold: default 2.0x MA

Visuals:
- Show Dashboard: on/off
- Position: 6 options (corners + top/bottom center)
- Cell Size: Tiny / Small / Normal / Large
- Show Overall Bias Row: on/off

==================================================

ALERTS

Five built-in alert conditions, ready to use as soon as you add the indicator:

- All TFs Bullish (6/6 bullish): maximum long confluence
- All TFs Bearish (6/6 bearish): maximum short confluence
- Majority Bullish (5+/6 bullish): strong long bias
- Majority Bearish (5+/6 bearish): strong short bias
- Overall Bias Shifted: fires when the OVERALL row changes state

==================================================

RECOMMENDED SETUPS

Scalper on 1m chart
- TF1: 1, TF2: 5, TF3: 15, TF4: 60, TF5: 240, TF6: 1D
- All thresholds at default

Day trader on 15m chart
- TF1: 15, TF2: 60, TF3: 240, TF4: 1D, TF5: 1W, TF6: 1M
- All thresholds at default

Swing trader on 4H chart
- TF1: 240, TF2: 1D, TF3: 1W, TF4: 1M, TF5: 3M, TF6: 6M
- EMA Slow to 100 if you want more sensitivity on higher TFs

Position trader on D1
- TF1: 1D, TF2: 1W, TF3: 1M, TF4: 3M, TF5: 6M, TF6: 12M
- Raise Min Samples style logic via slower EMAs (50/100/200)

==================================================

HOW IT CONNECTS TO THE EV SUITE

This dashboard is the context layer. Pair it with the rest of EV Labs:

- EV Probability Engine : only take signals when the OVERALL row agrees with the trade direction
- EV Fair Value Gaps : high-probability entries when an FVG appears inside a TF marked ALIGN in your bias
- EV Order Blocks : OB taps are strongest in TFs where structure matches trend
- EV Liquidity Sweeps : sweep signals are highest quality in TFs where STATUS is ALIGN
- EV Smart Volume : cross-check the spike markers with the VOLUME column in the dashboard

==================================================

LIMITATIONS

- The "structure" column uses EMA alignment as a proxy for HH/HL market structure, not the full ICT HH/HL pivot logic. It is a robust shortcut, not a literal replacement for proper swing detection.
- request.security() calls are limited by Pine's platform limits. Six timeframes with 2 calls each is well within budget, but adding more would push the boundary.
- The OVERALL bias is a simple majority vote (4 of 6). It does not weight higher timeframes more than lower ones, even though in practice a 1W signal usually matters more than a 15m signal.
- Not a signal service. It is a context and confirmation tool.

==================================================


Built by EV Labs · Pine Script v6 · Open source
