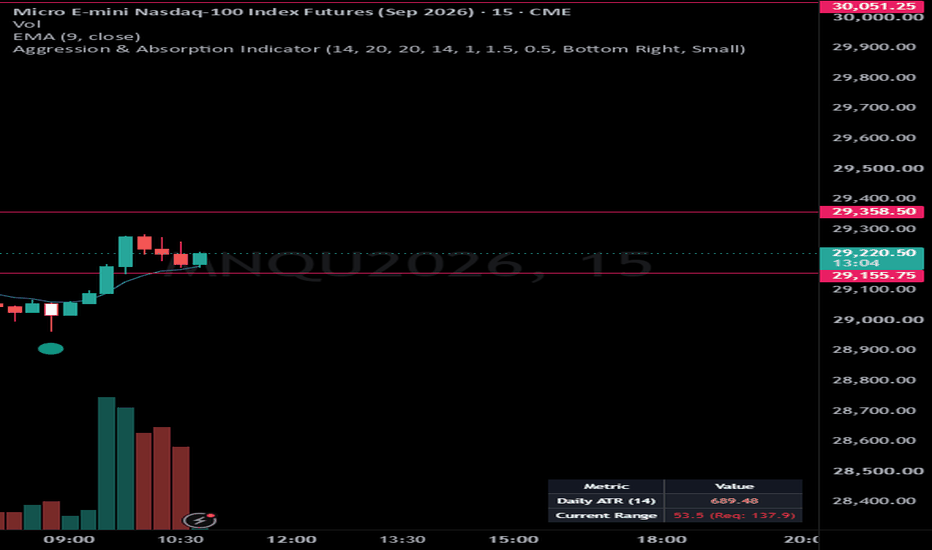

Aggression & Absorption IndicatorAggression and Absorption Indicator
Overview
The Aggression and Absorption Indicator is a powerful price-action tool designed to identify significant institutional participation and volatility anomalies directly on your chart. It dynamically scans for two distinct market behaviors—Aggression and Absorption—by analyzing volume, wicks, body sizes, and True Range (ATR) across both local and daily timeframes.
Core Features
1. Aggression Detection (Daily ATR Baseline)
Aggression candles represent massive, unhindered momentum. The indicator identifies these by comparing the current candle's range against the Daily Average True Range (ATR).
- Signal: By default, if a single intraday candle consumes 20% of the entire Daily ATR, and the candle's body makes up the majority of that range, it is highlighted in Purple. This signals a high-conviction momentum push.
2. Absorption Detection (Local ATR & Volume)
Absorption occurs when heavy buying or selling pressure is met with an equal or greater opposing force, trapping traders.
- Signal: The script looks for a surge in volume (relative to a 20 SMA) combined with a larger-than-average local candle range. If a large wick forms—indicating that the aggressive pressure was absorbed and rejected—the candle is painted White.
- Visual Cues: A Green Bubble below the candle indicates Bullish Absorption (selling pressure absorbed), while a Red Bubble above indicates Bearish Absorption (buying pressure absorbed).
3. On-Chart ATR Dashboard
A customizable dashboard is included to help you monitor the daily volatility baseline. It displays the current Daily ATR value and tracks the real-time range of the active candle against the required threshold for an Aggression signal, keeping you informed without cluttering your workspace.
Customization
Everything is fully customizable. You can adjust the ATR lookback periods, volume surge thresholds, wick ratios required for absorption, and the body percentage required for aggression. The dashboard can also be resized and positioned anywhere on your chart.
インジケーター
Last Day Candle Range Marker Version IIIThe Last Day Range Marker Version III is designed to visualize important price ranges from both the previous trading day and the current chart timeframe.
Features
• Displays the Previous Day High and Previous Day Low as customizable horizontal lines.
• Optionally highlights the previous day's range with a colored box.
• Displays the High and Low of the current chart timeframe candle.
• Optional range box for the current timeframe candle.
• Calculates and displays the percentage range (High–Low) for both the previous day and the current timeframe.
• Fully customizable colors, line styles (Solid, Dashed, Dotted), and line widths.
• Adjustable line length to the left and extension to the right.
• Individual on/off switches for the Previous Day and Timeframe sections.
• Clean labels showing High, Low, and percentage range directly on the chart.
Benefits
• Quickly identify important support and resistance levels.
• Compare the previous day's range with the current timeframe's price action.
• Ideal for breakout, range, momentum, and intraday trading strategies.
• Works on all symbols and all TradingView-supported timeframes.
The indicator is lightweight, easy to customize, and helps traders keep the most relevant price levels visible without cluttering the chart.
インジケーター

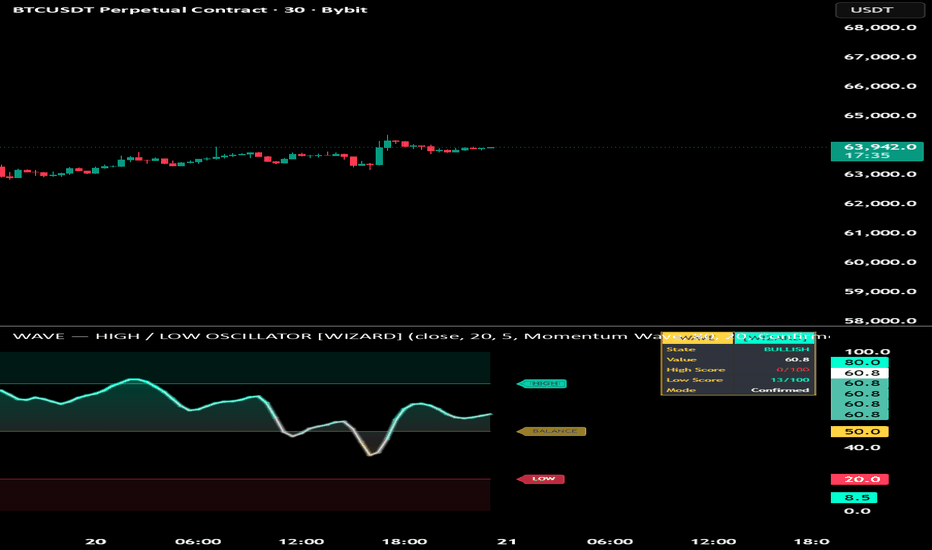

Wave Oscillatorwave high low detector pro
wave high low detector is a bounded oscillator designed to help identify potential local high and low areas using momentum, rsi behavior, pivot confirmation, candle rejection, divergence, atr exhaustion, structure breaks, cooldown logic and quality scoring.
the oscillator moves between 0 and 100.
a value near 100 means price is trading close to the upper part of its recent range or showing strong upside momentum.
a value near 0 means price is trading close to the lower part of its recent range or showing strong downside momentum.
the script does not predict the future and does not guarantee market tops or bottoms. it is a technical analysis tool that marks possible early and confirmed high or low references. every signal should be confirmed with price action, market structure, volume, trend context and risk management.
main idea
the indicator separates high and low detection into two signal types:
early high and early low
confirmed high and confirmed low
early signals are faster and more reactive. they appear when the oscillator leaves an extreme zone and the selected filters agree.
confirmed signals are slower but more selective. they use pivot confirmation and additional context to validate a stronger high or low reference.
this design allows the trader to choose between speed and confirmation.
what the indicator shows
wave oscillator
high zone
low zone
balance zone
early high markers
early low markers
confirmed high markers
confirmed low markers
quality score labels
bull and bear gradient fill
optional glow
right-side zone labels
dashboard with state, value, score and mode
separate alerts for early and confirmed signals
how high and low detection works
an early high appears when the oscillator leaves the upper zone after being stretched upward.
an early low appears when the oscillator leaves the lower zone after being stretched downward.
a confirmed high appears only when a pivot high is confirmed and the score is strong enough.
a confirmed low appears only when a pivot low is confirmed and the score is strong enough.
confirmed signals are placed back on the pivot location, so they naturally appear with a delay. this is normal because pivots need future bars to confirm the local high or low.
quality score
the score rates the quality of a potential high or low from 0 to 100.
the score can include:
extreme oscillator condition
super extreme oscillator condition
oscillator slope reversal
wick rejection
atr exhaustion
divergence
structure break
pivot confirmation
a higher score means more conditions agree. a lower score means the setup is weaker or less complete.
the score is not a trade signal by itself. it is only a filter that helps compare the quality of different high and low references.
input guide
engine
source
selects the price source used by the rsi engine.
common choices are close, open, high, low, hl2, hlc3 or ohlc4.
length sensitivity
controls how many bars are used by the oscillator engine.
lower values make the wave faster and more reactive.
higher values make the wave smoother and slower.
smoothing
smooths the oscillator.
higher values reduce noise but add delay.
lower values react faster but may produce more signals.
engine
selects the oscillator calculation method.
momentum wave
uses a stochastic-style high and low range calculation. this is the most direct mode for high and low detection.
rsi
uses a smoothed rsi. this mode reads momentum exhaustion rather than pure range position.
blend
combines rsi and range position. this gives a balanced reading between momentum and high or low range behavior.
levels
overbought high zone
sets the upper zone where price is considered stretched toward the high area.
default logic usually works around 80.
oversold low zone
sets the lower zone where price is considered stretched toward the low area.
default logic usually works around 20.
show midline
shows or hides the 50 balance line.
above 50, the oscillator is generally stronger.
below 50, the oscillator is generally weaker.
high low detector
detection mode
controls the signal strictness.
fast
more reactive. it allows earlier signals with fewer confirmations.
balanced
uses a middle approach between speed and confirmation.
confirmed
stricter and slower. it requires stronger confirmation and higher score quality.
show early high low
shows or hides early high and early low markers.
show confirmed high low
shows or hides confirmed high and confirmed low markers.
balanced minimum score
sets the minimum score used in balanced mode.
higher values reduce signals.
lower values increase signals.
pivot left bars
sets how many bars to the left are used to confirm a pivot.
higher values make pivots more important but slower.
pivot right bars
sets how many bars to the right are required to confirm a pivot.
higher values make confirmed signals more reliable but delayed.
cooldown between signals
sets the minimum number of bars between repeated signals of the same type.
this helps reduce signal spam.
show quality score labels
shows or hides score labels near early and confirmed markers.
optional filters
use divergence in score
adds divergence logic to the quality score.
bearish divergence can strengthen a confirmed high.
bullish divergence can strengthen a confirmed low.
wick rejection filter
requires a rejection wick before accepting signals.
for highs, the script looks for upper wick rejection.
for lows, the script looks for lower wick rejection.
min wick percent of candle
sets the minimum wick size needed for the wick rejection filter.
higher values make the filter stricter.
lower values allow more signals.
atr exhaustion filter
requires price to be extended away from a moving average by an atr-based distance.
this helps focus on stronger exhaustion moves.
atr length
sets the atr calculation length.
atr exhaustion multiplier
sets how far price must extend from the average before the atr exhaustion filter confirms.
structure break filter
requires a short structure break to confirm the signal.
for highs, price should break below recent structure.
for lows, price should break above recent structure.
structure break lookback
sets how many bars are used to define the recent structure level.
visuals
glow
turns the glow effect around the wave on or off.
glow intensity
controls the strength of the glow.
bull bear gradient fill
fills the area between the wave and the midline with a bull or bear gradient.
fill transparency
controls how visible the gradient fill is.
higher transparency makes the fill lighter.
lower transparency makes the fill stronger.
tint high low zones
adds a faint background tint to the high and low areas.
color theme
selects the visual color style.
wizard
default bright cyan and red style.
ice
cool blue theme.
inferno
warm orange and red theme.
toxic
green and purple style.
markers
show high low markers
turns all markers on or off.
marker labels
selects the marker text style.
high low
uses early high, early low, confirmed high and confirmed low style labels.
buy sell
uses early buy, early sell, confirmed buy and confirmed sell style labels.
these labels are visual references only, not automatic entries.
show zone labels right
shows high, low and balance labels on the right side of the oscillator.
dashboard
show dashboard
shows or hides the dashboard.
position
selects the dashboard location.
the dashboard displays:
current state
current oscillator value
high score
low score
detection mode
signal types
early high
an early high appears when the wave leaves the high zone and the high score passes the selected requirements.
this means upside pressure may be weakening.
it is not a guaranteed top.
early low
an early low appears when the wave leaves the low zone and the low score passes the selected requirements.
this means downside pressure may be weakening.
it is not a guaranteed bottom.
confirmed high
a confirmed high appears when a pivot high is confirmed and the score is strong enough.
this signal is more selective but appears later.
confirmed low
a confirmed low appears when a pivot low is confirmed and the score is strong enough.
this signal is more selective but appears later.
how to use the alerts
the script includes separate alert conditions:
early high
early low
confirmed high
confirmed low
any early high or low
any confirmed high or low
for fast monitoring, use early alerts.
for cleaner monitoring, use confirmed alerts.
for fewer alerts, use only any confirmed high or low.
recommended anti-spam setup:
use confirmed signals only
increase cooldown between signals
use balanced or confirmed mode
keep pivot right bars at 3 or higher
increase the minimum score if there are too many signals
recommended beginner alert setup:
start with any confirmed high or low
use balanced mode
set cooldown between signals to 8 or more
keep score labels enabled
avoid using every alert condition at the same time
beginner tutorial
step 1: start with balanced mode
balanced mode is the best starting point because it avoids being too fast or too strict.
step 2: keep the default high and low zones
use 80 for the high zone and 20 for the low zone.
this gives a clean first reading.
step 3: watch the wave position
when the wave is above 80, price is stretched toward the high area.
when the wave is below 20, price is stretched toward the low area.
when the wave is around 50, the market is more balanced.
step 4: understand early signals
early signals are warnings.
early high means a possible local top area may be forming.
early low means a possible local bottom area may be forming.
do not enter a trade only because an early signal appears.
step 5: understand confirmed signals
confirmed signals are more selective.
confirmed high means a pivot high has been validated.
confirmed low means a pivot low has been validated.
these signals are slower because the script waits for confirmation.
step 6: read the score
a score near 50 is weaker.
a score near 65 is more acceptable.
a score above 75 is stronger.
a score above 85 means several filters agree.
step 7: confirm on the price chart
before using any signal, check:
trend direction
support and resistance
market structure
candle close
volume reaction
risk to reward
stop loss location
step 8: avoid overloading the chart
do not turn on every filter at once at the beginning.
start with:
balanced mode
wick rejection filter on
divergence in score on
atr exhaustion filter off
structure break filter off
cooldown enabled
after understanding the tool, activate atr exhaustion or structure break if you want stricter signals.
example 1: early high
price pushes upward and the wave moves above the high zone.
then the wave crosses back below the high zone.
an early high appears.
this means the upward push may be losing strength.
a beginner should wait for price rejection or a lower high before considering a short idea.
example 2: confirmed high
price forms a local high.
a few bars later, the pivot is confirmed.
the indicator prints confirmed high at the pivot location.
this is a stronger reference than an early high, but it appears later.
example 3: early low
price drops and the wave moves below the low zone.
then the wave crosses back above the low zone.
an early low appears.
this means downside pressure may be weakening.
a beginner should wait for support reaction or a higher low before considering a long idea.
example 4: confirmed low
price forms a local low.
a few bars later, the pivot is confirmed.
the indicator prints confirmed low at the pivot location.
this is a stronger reference than an early low, but it appears later.
example 5: using cooldown
if the market is volatile, the wave can create several signals close together.
cooldown prevents repeated signals from appearing too often.
higher cooldown values create a cleaner chart.
lower cooldown values create more frequent signals.
best use cases
spotting potential local highs
spotting potential local lows
detecting exhaustion zones
finding momentum fade areas
confirming high and low references with pivots
filtering noisy oscillator signals
building alerts for reversal watchlists
supporting discretionary trading decisions
important notes
early signals are faster but less confirmed.
confirmed signals are more selective but delayed.
pivot-based confirmation cannot appear instantly.
score is a filter, not a prediction.
buy and sell labels are only visual naming options.
the indicator should be combined with price action, structure, volume and risk management.
risk note
this indicator is for technical analysis and educational market study only. it does not provide financial advice, investment advice or guaranteed trading signals. all signals, markers, scores and alerts are references that require independent confirmation and proper risk management.
インジケーター
Market State Forecast Projection EngineThis indicator is a **forecast projection tool**. It looks at the current market environment, searches history for the most similar environments, then plots what usually happened afterward. It is not trying to predict the future with certainty. It is saying: “When the market looked like this before, what tended to happen next?”
The engine defines the current market environment using three things:
* **Trend**, based on moving averages.
* **Momentum**, based on RSI.
* **Volatility**, based on ATR.
Then it finds the closest historical matches, studies their future paths, and draws a forecast line with optional upper and lower bands.
---
## What You See on the Chart
### Forecast Midline
The main forecast line shows the **average path** of the selected historical matches.
In simple terms:
* If similar past situations usually moved higher, the line slopes up.
* If similar past situations usually moved lower, the line slopes down.
* If similar past situations were mixed, the line may be flat or choppy.
### Upper Band
The upper band shows the stronger side of historical outcomes.
It means:
* Some similar historical setups moved better than the average.
* The upper band gives you a visual idea of the upside range from those past examples.
* It is not a guaranteed target.
### Lower Band
The lower band shows the weaker side of historical outcomes.
It means:
* Some similar historical setups moved worse than the average.
* The lower band gives you a visual idea of downside risk from those past examples.
* It is not a guaranteed support level.
### Band Width
The space between the bands matters.
* Tight bands mean historical outcomes were more consistent.
* Wide bands mean historical outcomes were scattered and less reliable.
* A forecast with wide bands should be treated with more caution.
---
## Main Inputs
### Non-Repaint Mode
**Default: On**
This controls whether the forecast uses the live candle or the last completed candle.
Use **Non-Repaint Mode On** when:
* You want more stable signals.
* You want the forecast to update only after the candle closes.
* You care about cleaner historical testing.
Use **Non-Repaint Mode Off** when:
* You want the forecast to react during the current live candle.
* You accept that the forecast may change before the candle closes.
For most use cases, leave this **On**.
---
## Model Group
### Forecast Horizon
This controls how far into the future the indicator projects.
Example:
* On a daily chart, `20` means 20 trading days.
* On a 1-hour chart, `20` means 20 hours.
* On a 5-minute chart, `20` means 20 five-minute candles.
Use a lower value when:
* You are trading short-term moves.
* You want a tighter forecast window.
* You do not want the projection stretched too far.
Use a higher value when:
* You are looking for swing-trade context.
* You want to see the broader projected path.
* You are using higher timeframes.
A practical range is usually:
* `10–20` for shorter-term analysis.
* `20–50` for swing-style analysis.
---
### Search Depth
This controls how much history the engine searches.
Example:
* `1000` means the engine searches roughly 1,000 prior bars.
* `2000` means it searches more history.
* `500` means it searches less history.
Use a higher Search Depth when:
* You want a larger historical sample.
* You are on a short timeframe with lots of bars.
* You want more possible market-state comparisons.
Use a lower Search Depth when:
* You want the model to focus on more recent market behavior.
* You are on a slower chart like daily or weekly.
* You want less influence from older market regimes.
The tradeoff is simple:
* More history gives more examples.
* Less history may be more relevant to the current market regime.
---
### Pattern Matches
This controls how many of the closest historical matches are used.
This is one of the most important inputs.
If set to `30`, the engine finds the **30 closest historical market states** and builds the forecast from those.
Use fewer matches when:
* You want stricter, more specific comparisons.
* You want only the closest historical examples.
* You are okay with a forecast that may be more reactive.
Use more matches when:
* You want a smoother forecast.
* You want less noise from individual examples.
* You want a broader historical sample.
General interpretation:
* `10–20` = stricter, more selective.
* `25–40` = balanced.
* `50+` = broader, smoother, but less specific.
---
### Weight Closer Matches
This controls whether the best matches receive more influence.
When turned **On**:
* The closest historical matches matter more.
* Weaker matches still count, but less heavily.
* The forecast becomes more focused on the most similar examples.
When turned **Off**:
* Every selected match is treated equally.
* The forecast becomes more democratic.
* A very close match and a weaker match have the same influence.
For most users, leave this **On**.
---
## Advanced Model Inputs
### Forecast Model
This chooses how the engine defines the market environment.
All models use:
* EMA trend.
* RSI momentum.
* ATR volatility.
The difference is how each model emphasizes those ingredients.
---
### Conservative
Use **Conservative** when you want a slower, smoother model.
It is designed to:
* React less aggressively.
* Favor more stable market environments.
* Put more importance on trend and volatility.
* Reduce noisy forecast changes.
Best for:
* Daily charts.
* Swing trading.
* Slower-moving stocks or ETFs.
* Users who want fewer false shifts.
---
### Balanced
Use **Balanced** as the general-purpose default.
It is designed to:
* Give trend, momentum, and volatility a normal balance.
* Work across many markets.
* Avoid being too slow or too fast.
Best for:
* Most users.
* Most chart timeframes.
* General market forecasting.
* Starting point before testing other models.
---
### Aggressive
Use **Aggressive** when you want a faster model.
It is designed to:
* React more quickly to changing momentum.
* Give more influence to short-term market shifts.
* Be more sensitive to fresh moves.
Best for:
* Intraday trading.
* Fast-moving markets.
* Crypto.
* Momentum names.
* Traders who want earlier, more responsive shifts.
The downside is that it may be noisier.
---
### Trend Following
Use **Trend Following** when you want the model to emphasize persistent directional moves.
It is designed to:
* Care more about trend structure.
* Care less about short-term momentum noise.
* Favor markets that continue moving in the same direction.
Best for:
* Strong trending stocks.
* Indexes.
* Breakout environments.
* Higher-timeframe directional trading.
This model is less ideal in sideways or choppy markets.
---
### Mean Reversion
Use **Mean Reversion** when you want the model to focus on stretched conditions.
It is designed to:
* Emphasize momentum extremes.
* Look for environments where price may snap back or reverse.
* Care less about long-term trend persistence.
Best for:
* Range-bound markets.
* Overbought/oversold setups.
* Countertrend analysis.
* Shorter-term reversal ideas.
This model may fight strong trends, so use it carefully in momentum-heavy markets.
---
## Historical Lookback Inputs
### Lookback Bars
This lets you move the forecast backward in time.
Example:
* `0` means current forecast.
* `50` means show what the forecast would have looked like 50 bars ago.
* `250` means show what the forecast would have looked like 250 bars ago.
Use this for:
* Visual backtesting.
* Studying old setups.
* Checking whether the forecast was useful historically.
* Comparing forecast paths against what actually happened.
This is one of the most valuable testing features.
---
### Lock to Candle
This lets you anchor the forecast to a specific candle time instead of a simple bar offset.
Use it when:
* You want to test a specific time of day.
* You trade a regular session open.
* You want repeatable historical anchors.
Example:
* You can lock to the 13:30 UTC candle, which often corresponds to the U.S. stock market open during daylight saving time.
When this is off, the indicator uses **Lookback Bars** instead.
---
### Days Back
This works with **Lock to Candle**.
It tells the indicator how many matching anchor candles to go back.
Example:
* `0` = most recent matching candle.
* `1` = one matching session back.
* `2` = two matching sessions back.
Use this when:
* You want to test the most recent open.
* You want to test yesterday’s open.
* You want to step through past sessions one by one.
---
### Hour UTC
This is the UTC hour used for candle locking.
Use it with **Minute UTC** to identify the exact candle you want.
Example:
* `13` means 13:00 UTC.
* Combined with `30`, it means 13:30 UTC.
This is useful because TradingView symbols and sessions can vary, but UTC gives a consistent anchor.
---
### Minute UTC
This is the UTC minute used for candle locking.
Example:
* Hour UTC = `13`
* Minute UTC = `30`
Together, that means:
* Lock to the 13:30 UTC candle.
Use this for precise historical testing.
---
### Auto Previous Session
This controls what happens if today’s target candle has not printed yet.
When turned **On**:
* The indicator automatically uses the most recent previous matching candle.
* This keeps the forecast visible even before today’s target time exists.
When turned **Off**:
* If today’s target candle has not printed, the lock may show no match and fall back.
For most users, leave this **On**.
---
## Bias Logic Inputs
### Bias Threshold %
This controls how strong the bull or bear probability must be before the indicator labels the forecast bullish or bearish.
Example:
* If Bias Threshold is `60`, Bull Probability must be at least 60% before a bullish label can appear.
* If Bear Probability is at least 60%, a bearish label can appear.
Use a lower threshold when:
* You want more frequent bias labels.
* You are okay with weaker directional evidence.
Use a higher threshold when:
* You want stricter signals.
* You only want stronger historical agreement.
Practical range:
* `60%` = balanced.
* `70%+` = more conservative.
* `50–55%` = loose and more signal-heavy.
---
### Minimum Bull/Bear Edge %
This controls how large the gap must be between Bull Probability and Bear Probability.
Example:
* Bull Probability = 65%
* Bear Probability = 35%
* Edge = 30 percentage points
If the minimum edge is `15`, this would qualify.
But:
* Bull Probability = 58%
* Bear Probability = 42%
* Edge = 16 percentage points
This may still fail if Bull Probability is below the Bias Threshold.
This input prevents weak differences from being labeled as strong directional bias.
Use a higher edge when:
* You want cleaner bias labels.
* You want the model to avoid borderline calls.
Use a lower edge when:
* You want more frequent directional bias.
* You accept more uncertainty.
---
## Display Inputs
### Show Forecast Midline
This turns the main forecast line on or off.
Turn it **On** when:
* You want to see the projected average path.
Turn it **Off** when:
* You only want the info box probabilities.
* You want a cleaner chart.
---
### Show Confidence Bands
This turns the upper and lower forecast bands on or off.
Turn it **On** when:
* You want to see the historical range of outcomes.
* You care about uncertainty.
* You want to know whether the forecast is tight or messy.
Turn it **Off** when:
* You only want the central forecast.
* The chart feels too cluttered.
---
### Band Width Multiplier
This controls how wide the bands are.
Higher values make the bands wider.
Lower values make the bands tighter.
Use lower values when:
* You want a cleaner, tighter visual range.
* You want bands closer to the average forecast.
Use higher values when:
* You want to see a broader range of historical outcomes.
* You want a more conservative uncertainty envelope.
Default `1.0` is a good starting point.
---
## Forecast Midline Style Inputs
### Forecast Midline Color
Controls the color of the main projection line.
The default aqua color makes it visually distinct from price candles.
### Forecast Midline Width
Controls how thick the midline is.
Use a thicker line when:
* You want the forecast to stand out.
* You are using a busy chart.
Use a thinner line when:
* You want a cleaner chart.
* You use many overlays.
### Forecast Midline Type
Controls whether the line is:
* Solid.
* Dashed.
* Dotted.
Solid is usually best for the main forecast line.
---
## Upper Band Style Inputs
### Upper Band Color
Controls the color of the upper forecast band.
The default green tone suggests upside range.
### Upper Band Width
Controls how thick the upper band is.
A thin dashed line usually works best because it should be secondary to the midline.
### Upper Band Type
Controls whether the upper band is solid, dashed, or dotted.
Dashed is usually best because it visually communicates “range” rather than “target.”
---
## Lower Band Style Inputs
### Lower Band Color
Controls the color of the lower forecast band.
The default red tone suggests downside range.
### Lower Band Width
Controls how thick the lower band is.
A thin line keeps it useful without dominating the chart.
### Lower Band Type
Controls whether the lower band is solid, dashed, or dotted.
Dashed is usually best for the same reason as the upper band.
---
## Info Box Inputs
### Show Info Box
This turns the dashboard on or off.
Turn it **On** when:
* You want the probabilities and diagnostics visible.
* You are actively evaluating the forecast.
Turn it **Off** when:
* You only want the chart projection.
* You want a cleaner visual layout.
---
### Info Box Position
Controls where the dashboard appears.
Options:
* Top Left.
* Top Right.
* Bottom Left.
* Bottom Right.
Use the position that interferes least with price action on your chart.
---
### Text Size
Controls the dashboard text size.
Use:
* **Tiny** for compact charts.
* **Small** for normal use.
* **Normal** if you want easier reading.
* **Large** for presentations or large monitors.
---
### Background
Controls the info box background color.
A darker background usually works best on most TradingView chart themes.
### Border
Controls the info box border color.
This helps separate the dashboard from the chart.
### Header Text
Controls the title/header text color.
### Header Background
Controls the top header row background.
This gives the dashboard its polished look.
---
## Info Box Metrics
### Bull Prob %
This shows the weighted percentage of selected historical matches that ended bullish.
Simple meaning:
> Of the similar historical market states, how many tended to move up?
A high number means bullish outcomes dominated the selected historical matches.
---
### Bear Prob %
This shows the weighted percentage of selected historical matches that ended bearish.
Simple meaning:
> Of the similar historical market states, how many tended to move down?
A high number means bearish outcomes dominated the selected historical matches.
---
### Direction Bias
This shows the final label after applying the bias rules.
Possible outputs:
* Bullish.
* Bearish.
* None.
* Weak Data.
* No Matches.
A bullish or bearish label only appears when the probability and edge requirements are met.
---
### Bull/Bear/Flat
This shows how many selected matches ended:
* Bullish.
* Bearish.
* Flat.
Example:
* `18 / 9 / 3`
This means:
* 18 bullish historical outcomes.
* 9 bearish historical outcomes.
* 3 flat historical outcomes.
This gives you a quick look at the underlying distribution.
---
### Match Count
This shows how many historical matches were actually used.
If Pattern Matches is set to `30`, Match Count should usually show `30`.
If it shows less, there may not have been enough valid historical data.
---
### Fit Quality
This tells you how closely the selected historical matches resemble the current market state.
High Fit Quality means:
* The current market environment closely resembles the selected historical examples.
Low Fit Quality means:
* The engine found matches, but they were not very close.
Important:
* Fit Quality is not win rate.
* Fit Quality is not probability.
* Fit Quality is not accuracy.
* It only measures how good the historical comparisons are.
Best interpretation:
* High Fit Quality + strong Bull/Bear Probability = more compelling.
* High Fit Quality + split probabilities = similar markets existed, but outcomes were mixed.
* Low Fit Quality = be cautious.
---
### Model
This shows which Forecast Model is active.
Examples:
* Balanced.
* Conservative.
* Aggressive.
* Trend Following.
* Mean Reversion.
This is useful for screenshots and reviewing past setups.
---
### Anchor
This tells you where the forecast is anchored.
Examples:
* `0 bars · NR` means current forecast using Non-Repaint Mode.
* `50 bars · NR` means historical forecast from 50 bars ago.
* `Locked` means it is anchored to a specific UTC candle.
This helps you know whether you are looking at a current forecast or a historical replay.
---
### Search Depth
This shows the actual number of bars being searched.
It may be lower than your input if the chart does not have enough loaded history.
---
## Best Practical Way to Use It
A clean workflow would be:
* Start with **Balanced** model.
* Keep **Non-Repaint Mode On**.
* Use **Pattern Matches around 30**.
* Use **Search Depth around 1000**.
* Watch **Fit Quality**.
* Watch **Bull/Bear Probability**.
* Treat the forecast line as a scenario path, not a guaranteed prediction.
* Use **Lookback Bars** to test whether the forecast was historically useful.
* Avoid trusting any forecast where the bands are very wide and probabilities are split.
The strongest setup is usually when:
* Fit Quality is high.
* Bull or Bear Probability is clearly dominant.
* The forecast bands are not extremely wide.
* The projection agrees with price structure.
インジケーター
AlphaTrend Momentum Matrix [MarkitTick]💡 The AlphaTrend Momentum Matrix is an advanced, comprehensive trend-following architecture designed to dynamically track market momentum, manage dynamic trade states, and seamlessly bridge the gap between technical charting and automated execution. Far from a simple overlay, this script acts as a multi-layered analytical suite. It evaluates primary trend direction using volatility and volume-weighted money flow, filters out market noise with a custom state-matrix, and projects actionable higher-timeframe data onto the active chart. Furthermore, it incorporates an internal mathematical framework capable of dynamically calculating strict risk-to-reward targets and dispatching meticulously formatted JSON payloads for external webhook execution.
✨ Originality and Utility
● The Momentum Matrix Advantage
While traditional trend indicators rigidly lock onto moving averages or standard price bands, the AlphaTrend Momentum Matrix thrives on market dynamism. Its true utility lies in its multifaceted approach to trend validation. It introduces an exclusive "ATR Breakout Override" system—a custom logic module that forces a trend recalibration if an explosive price movement severely disrupts the standard deviation envelope, regardless of standard trailing conditions. This ensures the indicator remains highly responsive to sudden, high-impact market events without waiting for lagging conditions to catch up.
● Automated Payload and State Management
A standout feature of this tool is its embedded Trade State system. It does not merely paint a signal on the chart; it internalizes the exact entry price, computes a precise stop-loss based on the active AlphaTrend baseline, and mathematically projects a 1:2 risk-to-reward Take Profit target. This localized tracking seamlessly interfaces with the built-in Alert Engine, dynamically injecting these critical metrics into formatted JSON templates ready for third-party automated execution systems.
🔬 Methodology and Concepts
● AlphaTrend Core Engine
The primary directional engine relies on the interplay between the Average True Range (ATR) and the Money Flow Index (MFI). A trailing upper band (Support) and lower band (Resistance) are calculated using a user-defined ATR coefficient. The script interrogates the 14-period MFI; if the MFI reads above 50, indicating positive money flow momentum, the algorithm biases toward the Support band, updating it only when the price makes higher lows. Conversely, an MFI below 50 shifts the bias to the Resistance band.
● Breakout Override Protocol
To counteract the inherent lag of volume-weighted smoothing, the indicator employs a momentum breakout scanner. By measuring the absolute distance between the previous two closing prices and comparing it against the prior ATR multiplied by a sensitivity factor, the script can definitively detect volatility shocks. If a shock occurs concurrently with a directional price cross over the active AlphaTrend line, the system immediately forces a directional shift, bypassing the standard MFI requirements.
● Signal Filtering and Matrix Constraints
Raw signal crossovers are notoriously noisy during consolidation. To mitigate whipsaw trades, this script implements a continuous loop counter (the K and O matrices). It tracks the consecutive bars since the last primary buy or sell condition. A signal is only declared "valid" if it successfully breaks the historical sequence of the opposing trend counter, ensuring that localized micro-fluctuations do not trigger premature trade entries.
🔍 Deconstruction of the Underlying Scientific and Academic Framework
● Volatility and the Average True Range
Developed by J. Welles Wilder Jr. in 1978, the Average True Range is a foundational pillar of this indicator. The ATR scientifically quantifies absolute market volatility by decomposing the entire range of an asset's periodic price action, factoring in gaps and limit moves. By applying a multiplier to the ATR, this script establishes a statistically significant standard deviation envelope, distinguishing between normal market "breathing" and definitive structural shifts.
● Volume-Weighted Momentum via Money Flow Index
The MFI, created by Gene Quigley and Colin Dysart, represents an evolution of the Relative Strength Index (RSI). From an academic standpoint, the MFI incorporates volume into its momentum calculation, producing a more robust metric of buying and selling pressure. It uses the Typical Price (High + Low + Close / 3) multiplied by volume to calculate raw money flow. The 50-level threshold serves as the equilibrium point; sustaining above this level empirically signifies net accumulation, providing the mathematical justification for the indicator's bullish bias.
● Algorithmic State Machines
The signal filtering mechanism and the internal Trade State tracker are practical applications of Finite State Machines (FSM) commonly used in quantitative algorithmic design. The script holds memory of its current operational state (Long, Short, Neutral) and refuses state transitions unless specifically validated mathematical conditions (boolean logic gates) are met, significantly reducing error rates inherent in purely reactive, memory-less indicators.
● Repainting and Lookahead Warning
This script utilizes the request component to pull Higher Timeframe (HTF) context into the primary chart. Crucially, it employs the barmerge.lookahead_on parameter. While this creates a visually perfect, non-lagging representation of higher timeframe trends when analyzing historical data, it introduces lookahead bias. Traders must understand that historical HTF visuals and signals may appear with perfect precision on past bars, but real-time execution will lack this future data context, potentially resulting in different localized behavior in live markets.
🎨 Visual Guide
● The AlphaTrend Trailing Line
Up Trend (Bullish): A bold, solid step-line tracking below the price, rendered in a distinctive golden-yellow (#F0D080).
Down Trend (Bearish): A bold, solid step-line tracking above the price, colored in a deep crimson (#7A2010).
● The Cloud Fill
Dynamic Channel: A semi-transparent shaded area connecting the active AlphaTrend line to a central Cloud Reference Line (a smoothing of the typical price). This cloud visually represents the buffer zone of the current trend.
Color Coding: The cloud dynamically changes color to match the dominant trend (Gold for bullish, Crimson for bearish), allowing for rapid peripheral analysis of market conditions.
● Price Action Overrides
Colored Candles: The bodies and wicks of the actual price candles are uniformly colored to reflect the AlphaTrend matrix state, instantly identifying periods of alignment or divergence.
● Execution Elements
Signal Labels: Distinct "BUY" and "SELL" textual shapes appear precisely on the chart at the moment the state matrix validates a trend shift.
HTF Stepline: When enabled, a secondary, smoothed step-line appears to show the overarching macro trend, colored accordingly to dictate the broader market regime.
📖 How to Use
● Trend Riding and Context
The most effective way to utilize this tool is to align the primary chart timeframe with the HTF AlphaTrend line. If the HTF line is Gold, you should strictly look for "BUY" signals generated by the primary indicator to trade in the direction of the macro trend, ignoring temporary bearish signals as minor pullbacks.
● Momentum Breakout Confirmation
When you observe a sudden color change accompanied by an unusually large price bar, this is often the Breakout Override triggering. These scenarios represent high-momentum events. Instead of waiting for a retest, aggressive traders may use these specific signals to capture immediate volatility expansions, placing their stop-loss strictly on the opposite side of the newly formed AlphaTrend line.
● Automating Your Strategy
For quantitative traders, the indicator handles the heavy lifting of trade logic. Ensure you configure the exact JSON payload strings required by your third-party execution platform (like 3Commas, PineConnector, etc.) in the settings. The indicator will autonomously calculate your risk/reward parameters upon every valid signal and fire a perfectly formatted JSON alert.
⚙️ Inputs and Settings
• ⚙️ Core Calculations
ATR Multiplier: Defines the sensitivity of the trailing line. Lower values (e.g., 0.5) track price closely for scalping; higher values (e.g., 2.0) provide wide breathing room for swing trades.
ATR & MFI Lookback Period: The standard window (default 14) for calculating both volatility and volume momentum.
Display Signals: Toggles the visibility of the "BUY" and "SELL" chart labels.
• 🛡️ Breakout Override
Enable ATR Breakout Override: Turns the momentum-shock detection system on or off.
Breakout Sensitivity: Determines how large a price jump must be (relative to the ATR) to force a trend change. Lower values trigger more aggressively.
• 🕐 Higher Timeframe
Show HTF AlphaTrend: Projects the higher timeframe data onto the current chart.
HTF Timeframe: The specific macro timeframe to monitor (e.g., Daily "D" when trading on the 1-Hour chart).
• ☁️ Cloud Fill
Show Cloud Fill: Toggles the visual buffer zone on the chart.
Cloud Reference Length: Adjusts the smoothing period of the central reference line.
Color Candles: Enables or disables the overriding of standard chart candle colors based on trend direction.
• 🔌 Webhook Execution Config
Payload Actions: Four distinct text fields where you can define the exact syntax your external bot requires for entering longs, entering shorts, closing longs, and closing shorts. These values are automatically injected into the dynamic JSON alert string.
⚠️ Disclaimer
All provided scripts and indicators are strictly for educational exploration and must not be interpreted as financial advice or a recommendation to execute trades. I expressly disclaim all liability for any financial losses or damages that may result, directly or indirectly, from the reliance on or application of these tools. Market participation carries inherent risk where past performance never guarantees future returns, leaving all investment decisions and due diligence solely at your own discretion. インジケーター
Trend Master Bundle (5x EMA, DEMA & VWAP) | MouryaThe Trend Master Bundle is a comprehensive, trend-following utility designed to visualize perfect moving average alignment and volume-weighted momentum. By integrating multiple exponential moving averages, a double exponential moving average, and standard deviation VWAP bands, this tool provides a clear, quantitative view of both macro trend direction and intraday mean-reversion zones.
The "Perfect Alignment" Strategy
The core algorithmic logic of this indicator detects strict momentum states where the moving averages fan out in a specific sequence:
Extremely Bullish: Identified when the current price sits above the moving averages, and the MAs are stacked in strict ascending order: 5 EMA > 10 EMA > 20 EMA > 50 EMA > 100 DEMA > 200 EMA. This structural alignment indicates a dominant uptrend.
Extremely Bearish: Identified when the price remains below the moving averages, and they are stacked in descending order: 5 EMA < 10 EMA < 20 EMA < 50 EMA < 100 DEMA < 200 EMA.
Core Indicator Components
5x Exponential Moving Averages: Standard institutional lengths (5, 10, 20, 50, 200) serve as dynamic support and resistance layers.
100-Period DEMA: The Double Exponential Moving Average is utilized to reduce the lag inherent in standard EMAs. It reacts faster to price changes, serving as a highly responsive lead indicator for mid-to-long-term trend transitions.
VWAP with Standard Deviation Bands: The anchored Volume Weighted Average Price calculates the asset's true fair value based on volume and price. The surrounding standard deviation bands help measure market volatility and extension.
Upgraded Visual Features
End-of-Line Tracking Labels: Dynamic text labels automatically track the most recent candle, floating the name of each specific moving average (e.g., "EMA 50", "VWAP") directly at the end of its respective line for instant visual identification.
Dynamic Premium Dashboard: A sleek, non-intrusive dark-mode widget provides a real-time readout of the current trend state (Extremely Bullish, Extremely Bearish, or Neutral) and lists the exact current price values for all active moving averages.
Full Customisation: Every MA length, colour, VWAP anchor, and UI element can be toggled or adjusted via the indicator settings menu to suit individual charting preferences.
Practical Application
Trend Confirmation: Traders can use the dashboard to ensure they are trading in the direction of the dominant momentum.
Pullback Entries: During a confirmed "Extremely Bullish" or "Extremely Bearish" state, the 20 EMA and VWAP baseline often act as areas of interest for trend-continuation setups.
Mean Reversion: Price interaction with the outer VWAP standard deviation bands (Bands #2 and #3) can signal statistically overextended market conditions, helping identify potential exhaustion points or mean-reversion opportunities. インジケーター
Parabolic SAR Smart Filter [MarkitTick]💡 The Parabolic SAR Smart Filter is a sophisticated trend-following tool designed to enhance the traditional Parabolic Stop and Reverse (SAR) indicator with modern algorithmic filters. While the standard SAR is a staple in technical analysis for identifying trend direction and potential reversal points, it is notorious for producing false signals in sideways or low-volatility markets. This script addresses those limitations by integrating multi-timeframe (MTF) alignment, liquidity sweep detection, and volatility-normalized momentum scoring. By combining these advanced concepts, the indicator provides a high-fidelity visual experience through its "3D Neon" rendering engine, while offering a robust backend for automated trading via JSON-ready webhooks.
● ✨ Originality and Utility
The primary utility of this indicator lies in its ability to separate high-probability trend shifts from noise. Standard indicators often operate in a vacuum, ignoring the context of higher timeframes or the underlying liquidity structure of the market. The Smart Filter breaks this mold by introducing three critical layers of verification:
• Multi-Timeframe Trend Gating
The script allows users to select a higher timeframe (HTF) as a trend filter. A signal is only considered valid if the local trend aligns with the HTF direction. This prevents traders from fighting the "big picture" momentum, which is a common pitfall in trend-following strategies.
• Liquidity Sweep Integration
In modern market environments, institutional "stop hunts" or liquidity sweeps often precede genuine moves. This indicator identifies when a SAR flip occurs immediately after a sweep of local highs or lows, providing an additional layer of confidence that the reversal is backed by real capital movement rather than a minor price fluctuation.
• Neon Decay Visualization
Unlike static indicators, the "3D Neon" engine visualizes the "age" of a trend. As a trend matures, the visual intensity of the SAR dots fades. This creates an intuitive psychological cue for the trader, signaling that a trend may be reaching exhaustion or that the risk/reward ratio for new entries is diminishing.
● 🔬 Methodology and Concepts
The script is built upon several interconnected logical modules that process market data in real-time to generate actionable insights.
• SAR Logic and State Machine
The core engine utilizes a standard Parabolic SAR calculation, but it is encapsulated within a custom "Signal Engine" type. This engine tracks not just the current price, but the entry price, risk distance, and direction flips. This state-persistent approach allows for precise calculations of risk-to-reward ratios immediately upon a trend reversal.
• Momentum Score Calculation
The momentum score is a volatility-normalized metric. It is calculated by dividing the absolute distance between the current close and the SAR value by the Average True Range (ATR). This creates a "Sigma" style score that tells the trader how "extended" the price is relative to its average volatility. A high score suggests strong trend momentum, while a low score indicates a stagnant or consolidating market.
• Liquidity Sweep Logic
The sweep detection module looks back over a user-defined window (Sweep Lookback). It checks if the current low (for a bullish flip) is lower than the previous period's low, or if the current high (for a bearish flip) is higher than the previous period's high. If a SAR flip occurs under these conditions, it is flagged as a "Sweep Signal," suggesting that the market has purged liquidity before reversing.
• Early Warning System
To assist with trade management, the script calculates an "Early Warning" threshold. If the price returns to within 10% of the initial entry risk distance from the SAR dot, the script triggers a visual warning. This helps traders anticipate stops or adjust their trailing logic before a full reversal occurs.
● 🎨 Visual Guide
The chart interface is designed for clarity and rapid data interpretation through color theory and geometric shapes.
• The 3D Neon SAR
The SAR is rendered as a three-layered circle: Core, Inner Glow, and Outer Glow.
Neon Blue represents a Bullish trend, while Neon Orange/Amber represents a Bearish trend.
The transparency of these layers increases as the trend persists (Neon Decay), making the visuals "glow" brightly at the start of a move and fade as it ages.
• Neon Candles
The script includes an optional "Neon Candles" mode. This colors the entire candle body and wick to match the current SAR trend direction.
This provides a cohesive visual experience and reduces the cognitive load required to identify the current market bias.
• Specialized Shapes and Labels
Triangle Up/Down: Small yellow triangles appear on the SAR dots when the "Early Warning" system is active, signaling price proximity to the invalidation point.
Label Up/Down: Bright yellow labels appear below (for buys) or above (for sells) a bar when a "Liquidity Sweep" is detected at the moment of a trend flip.
• Dark-Mode Analytics Dashboard
Located in the top-right corner, the dashboard provides a real-time summary.
Trend State: Displays "BULLISH" or "BEARISH" in high-contrast text.
Entry Trigger: The exact price where the most recent SAR flip occurred.
Target (TP) and Invalidation (SL): Dynamic price levels based on the configured Risk/Reward ratio.
Momentum Bar: A visual power bar (█░) that changes color based on the current momentum score (Green for High, Yellow for Medium, Gray for Low).
MTF Context: Displays "ALIGNED" or "DIVERGED" based on the higher timeframe status.
● 📖 How to Use
Effective utilization of the Smart Filter involves combining the visual signals with the dashboard metrics to form a comprehensive trade thesis.
Identify a Trend Flip: Wait for the Parabolic SAR dots to switch from above the price to below (Bullish) or vice versa (Bearish).
Verify MTF Alignment: Check the dashboard or the MTF Context label. High-probability trades occur when the current timeframe trend matches the Higher Timeframe trend.
Check for Liquidity Sweeps: Look for the yellow "Sweep" labels. A flip that occurs after a liquidity sweep is often more reliable as it indicates a "washout" of weak hands.
Assess Momentum: Before entering, ensure the Momentum Power Bar is at least yellow or green. Low momentum (gray) indicates a lack of conviction in the move.
Set Risk Management: Use the TP and SL levels provided in the dashboard. The Stop Loss is always placed at the SAR level, while the Take Profit is projected based on your preferred Risk/Reward ratio.
Monitor Early Warnings: If the yellow triangles appear on the SAR dots, be prepared for a potential exit or trend shift, as price is encroaching on the SAR invalidation zone.
● ⚙️ Inputs and Settings
The indicator is highly customizable to fit various asset classes and trading styles.
• SAR Logic Group
SAR Start/Increment/Maximum: Controls the sensitivity and "acceleration" of the Parabolic SAR. Lower values make the SAR more trailing and slower, while higher values make it more sensitive to price changes.
Risk/Reward Ratio: Determines the distance of the Take Profit level relative to the distance between the entry price and the SAR stop loss.
ATR Length: Adjusts the window for the volatility calculation used in the Momentum Score.
• Visuals — 3D Neon Group
Neon Up/Down Colors: Allows full customization of the base and glow colors.
Neon Decay Duration: Sets how many bars it takes for the SAR dots to reach their maximum transparency. Longer durations keep the "glow" visible for longer trends.
Enable Bar Coloring: Toggles the neon-colored candle bodies.
• MTF Alignment Group
Higher Timeframe: Select the timeframe used for the trend gate (e.g., if trading on the 15m, you might set this to 1H or 4H).
• Liquidity Sweep Group
Sweep Lookback: The number of preceding bars checked to determine if the reversal occurred after a break of a significant high or low.
● 🔍 Deconstruction of the Underlying Scientific and Academic Framework
The Parabolic SAR Smart Filter is grounded in several quantitative and behavioral finance theories.
• Volatility Normalization (ATR Theory)
The integration of the Average True Range (ATR) to calculate momentum scores is based on the principle of volatility normalization. In financial mathematics, price movement is often "noisy." By dividing the price-to-SAR distance by the ATR, we essentially convert price distance into units of standard volatility. This allows for a more objective comparison of trend strength across different assets regardless of their nominal price or historical volatility.
• Market Microstructure and Liquidity Theory
The liquidity sweep detection logic is an application of Market Microstructure theory, specifically the concept of "Informationless Trades." Large institutional participants often require significant liquidity to enter positions, which is frequently found at levels where retail stop-losses are clustered (just below recent lows or above recent highs). Identifying a "sweep" before a trend reversal aligns the indicator with the concept of "Smart Money" accumulation or distribution.
• Fractal Market Hypothesis (MTF Alignment)
The use of multi-timeframe alignment is supported by the Fractal Market Hypothesis (FMH). FMH suggests that financial markets are fractal in nature and that trends on lower timeframes are nested within larger trends on higher timeframes. By requiring alignment between timeframes, the script seeks to capitalize on the "Self-Similarity" of market trends, increasing the probability that the local move is supported by a larger structural shift.
• Decay Functions and Time-Decay Bias
The Neon Decay visualization applies a linear decay function to the trend's age. This is academically related to the concept of "Trend Maturity Bias," where the probability of a trend continuation decreases (and the variance of price increases) as the trend persists over time. Visualizing this decay provides a non-linear representation of risk that standard technical indicators lack.
⚠️ Disclaimer
All provided scripts and indicators are strictly for educational exploration and must not be interpreted as financial advice or a recommendation to execute trades. I expressly disclaim all liability for any financial losses or damages that may result, directly or indirectly, from the reliance on or application of these tools. Market participation carries inherent risk where past performance never guarantees future returns, leaving all investment decisions and due diligence solely at your own discretion. インジケーター
High-Momentum Option Breakout(MastersinMarkets)Overview
The High-Momentum Option Breakout is a technical tool designed to identify high-probability volatility expansions in equity indices. By combining price action breakouts with trend, strength, and volume filters, it aims to pinpoint specific windows where momentum is likely to accelerate.
How It Works
The script utilizes a multi-layered confirmation process to reduce "fakeouts" often found in standard breakout systems:
Breakout Engine: It monitors a user-defined lookback period to establish dynamic upper and lower bands based on recent price extremes.
Trend Hierarchy: A 200-period Exponential Moving Average (EMA) acts as a high-timeframe filter, ensuring signals align with the broader market regime.
Strength Filter (ADX): To confirm momentum, the script requires the Average Directional Index (ADX) to be above a specific threshold (default 20), indicating a trending environment rather than a sideways churn.
Volume Confirmation: Signals are only triggered when current volume exceeds the 20-period average, suggesting institutional participation in the move.
Dynamic Risk Management: The indicator plots a trailing exit level based on the Average True Range (ATR), which adjusts to market volatility to help protect capital.
How to Use
Long Bias (BUY CE): Triggered when price crosses above the upper band while trading above the 200 EMA with rising ADX and high volume.
Short Bias (BUY PE): Triggered when price crosses below the lower band while trading below the 200 EMA with rising ADX and high volume.
Momentum Exit: While the ATR-based stop is the primary defense, the script also suggests an exit if ADX begins to fall, signaling that the immediate momentum "steam" may be dissipating.
Originality and Value
This script is unique because it integrates momentum decay (falling ADX) as a specific exit trigger tailored for option buyers who need to manage time decay (Theta). It automates the confluence of four distinct technical pillars into a single, non-repainting visual interface.
Risk Disclaimer
Trading involves significant risk. This indicator is a tool for analysis and does not guarantee future profits. Past performance, including the visual signals shown on this chart, is not indicative of future results. Users should always use independent judgment and proper position sizing.
インジケーター
BE-QuantFlow: Adaptive Momentum Trading█ Overview: QuantFlow: Adaptive Momentum Trading
QuantFlow is a sophisticated algorithmic momentum trading method designed specifically for indices and high-beta stocks. However, its logic is universal; with appropriate parameter tuning, it adapts to various asset classes and timeframes.
While the standard momentum indicators (like RSI or MACD) simply measure how fast price is moving (Velocity), QuantFlow analyzes the quality and conviction of the trend . Features like Dynamic Volatility Filtering and Trend Shielding, combined with volatility weighting and a "Dual-Line" approach to distinguish between a sustainable institutional trend and a temporary retail spike, make the indicator unique and more powerful.
█ Why QuantFlow ?
Quant (The Engine): This replaces subjective guessing with objective math.
Instead of just seeing that the price is "up," we measure "how it got there". For example, a stock that rises 1 currency value every day for 10 days (smooth trend) gets a much higher score than a stock that jumps 10 currency value in one minute and does nothing else (erratic noise). This mathematical rigor provides the structure.
█ Core Logic & Philosophy
To understand how QuantFlow calculates momentum, imagine a "Tug-of-War" between Buyers (Bulls) and Sellers (Bears). Most indicators (like RSI) use a single line. If RSI is at 50, it means "Neutral." But "Neutral" can mean two very different things:
Peace: Nothing is happening. No one is buying or selling.
War: Buyers are pushing hard, but Sellers are pushing back equally hard. Volatility is massive.
A single line hides this reality. QuantFlow splits the market into two separate scores:
Bull Score (Green Line): How hard are the buyers pushing?
Bear Score (Red Line): How hard are the sellers pushing?
The Layman's Advantage:
If both lines are low = Sleepy Market (Avoid).
If Green is high and Red is low = Clean Uptrend (Buy).
If Red is high and Green is low = Clean Downtrend (Sell).
If both lines are high = Chaos/War Zone (Wait).
█ How it Weight "Sustenance" (The Critical Quality Check)
This is the most unique aspect of QuantFlow: Trend direction alone is not enough; Sustenance is weighed equally . Standard indicators treat every 10 currency value movements the same way with no distinction. However, QuantFlow asks, "Did you hold the ground you gained?"
Scenario A (High Sustenance) : A stock opens at 100, marches to 110, and closes at 110.
Verdict : Buyers pushed up and sustained the price.
QuantFlow Weight : 100%. This is a high-quality move.
Scenario B (Low Sustenance) : A stock opens at 100, spikes to 110, but gets sold off to close at 102.
Verdict : Buyers pushed up (Trend is Up), but failed to sustain it (Long Wick).
QuantFlow Weight : 20%. This is treated as "Noise" or a trap.
By mathematically weighing the Close Location Value (where the candle closes relative to its high/low), QuantFlow filters out "Gap-and-Fade" traps and exhaustion spikes that fool traditional indicators.
Comparisons: QuantFlow vs. The Rest
Calculation Logic : Standard RSI/MACD measures simple price change over time. QuantFlow measures Price Change 'times (x)' Conviction (Sustenance Weighting).
Visual Output : Standard tools show a single line (0-100), often hiding market conflict. QuantFlow displays Dual Lines (Bull vs Bear Intensity) to reveal the true state of the battle.
Trap Handling : Standard indicators are often fooled by sharp spikes. QuantFlow ignores "Gap-and-Fade" moves with poor closing conviction.
Adaptability : Standard tools use static levels (e.g., Overbought > 70). QuantFlow uses Dynamic Bands that adjust automatically to recent volatility.
█ Dynamic Volatility Filtering
Unlike standard indicators that use fixed levels (e.g., "Buy if RSI > 50"), QuantFlow acknowledges that "50" means something different in a quiet market versus a crashing market. This section explains the statistical engine driving the signals.
The Problem with Static Levels : In a low-volatility environment, a momentum score of 55 might indicate a massive breakout. In a high-volatility environment, a score of 55 might just be random noise. A fixed threshold cannot handle both scenarios.
The Solution: Adaptive Statistics : The script maintains a memory of the Momentum Events. It doesn't just look at price; it looks at where the momentum occurred in the past and draws a "Noise Zone" (Grey Band). This logic acts as a "Smart Gatekeeper" for trade entries:
Scenario A: Inside the Noise (The Filter)
If a new momentum signal happens inside the Noise Zone, the script assumes it is likely chop or noise.
Action : It forces a wait period. The signal is delayed until the trend sustains itself for Confirm Bars; else the signal is cancelled. This filters out ~70% of false signals in sideways markets.
Scenario B: Outside the Noise (The Breakout)
If a new momentum signal happens outside the Noise Zone (or the momentum score smashes through the Upper Band), it is statistically significant (an outlier event).
Action: It triggers an Immediate Entry. No waiting is required because the move is powerful enough to escape the historical noise zone.
█ The ⚠️ "Warning" System (Heads-up for Smart Reversals)
While you are directional if there is potential reversal signal, it provides the heads-up warning for a better decision-making
█ Special Utility: Ghost Mode
For intraday traders, the biggest disruption to "Flow" is the mandatory broker square-off at 3:15 PM (considering Indian Market). Often, a trend continues overnight, and the trader misses the gap-up opening the next morning because their algo was flat.
Ghost Mode is a unique feature that runs silently in the background:
At Square-off: The strategy closes your official position to satisfy the broker.
In the Background: It keeps the trade "alive" virtually (Ghost).
Next Morning: If the market opens in the trend's favor, the strategy re-enters the trade automatically. This approach ensures you capture the full swing of the trend, even if you are forced to exit at the previous session.
█ Advice on this indicator:
Parameter Calibration: The default settings are optimized for BankNifty on 5-minute charts. If you trade stocks, crypto, commodities, or any higher timeframes (e.g., 15-min or hourly), you must adjust these.
Low Volatility Assets: Reduce Stop Multiplier to 2.0.
High Volatility Assets: Increase Momentum Lookback to 50 to filter noise.
Confluence (Additional Confirmation): While QuantFlow is a complete system, using it alongside Key Support/Resistance Levels or Volume Profile provides the highest probability setups. ストラテジー
インジケーター
Luxy Sector & Industry RS AnalyzerEver wonder why some stocks soar while others in the same sector barely move? Or why your perfectly timed entry still loses money? Possibly the answer can be found in Relative Strength.
The Luxy Sector & Industry RS Analyzer solves a critical problem that most traders overlook: picking strong stocks in strong sectors AND strong industries . It's not enough for a stock to go up - you want stocks that are crushing their competition at both the sector AND industry level. This indicator does the heavy lifting by automatically comparing your stock against its sector ETF, industry ETF, the broader market, sector leader, and industry leader, giving you a complete multi-level picture of relative performance.
What makes this different?
- Automatic sector AND industry detection - no manual setup required
- Multi-level hierarchy analysis: Market → Sector → Industry → Stock
- Multi-timeframe analysis (1 month to 1 year) in one glance
- Industry ETF mapping (30+ industries covered)
- Clear 0-100 scoring system with letter grades (A+ to F)
- Works on stocks, crypto, forex, and commodities
- Real-time updates with anti-repaint protection
Think of it as your performance dashboard - instantly showing you if you're trading a champion or a laggard at every level of the market hierarchy.
METHODOLOGY & ATTRIBUTION
This indicator is based on classical Relative Strength (RS) analysis principles from technical analysis. RS methodology compares an asset's price performance against a benchmark to identify relative outperformance or underperformance. This concept has been used by professional traders and institutions for decades.
Key Concepts Used:
Relative Strength (RS) - Classical technical analysis concept measuring comparative performance
Multi-Level Hierarchy Analysis - Market → Sector → Industry → Stock comparison
Sector Rotation Analysis - Identifying which sectors are leading or lagging the market
Industry Rotation Analysis - Identifying which industries are leading within their sectors
Multi-period Performance Analysis - Evaluating strength across multiple timeframes
Beta Calculation - Standard statistical measure of volatility relative to a benchmark
DISCLAIMER: This indicator is for educational and informational purposes only. It should not be considered financial advice or a recommendation to buy or sell. Past performance does not guarantee future results. Trading involves risk and may not be suitable for all investors. Always do your own research and consult with a financial advisor before making investment decisions.
with all rows visible - capture when stock has strong RS score (70+) so users can see what a "good" setup looks like]
WHAT THE INDICATOR SHOWS
1. AUTOMATIC ASSET TYPE DETECTION
The indicator automatically identifies what you're analyzing and adjusts accordingly:
Stocks - Compares to sector ETF (XLK, XLF, XLV, etc.) and SPY
Crypto - Compares to Total Crypto Market Cap and Bitcoin
Forex - Compares to relevant currency index (DXY, EXY, etc.)
Commodities - Compares to Gold (GLD) as benchmark
Indices - Compares to broader market indices
How it works: The indicator reads your chart's asset type and ticker, then automatically maps it to the correct sector or benchmark. For stocks, it uses intelligent sector detection (looking at the sector field) to match you with the right sector ETF. For example:
- Technology stocks get compared to XLK (Technology Select Sector SPDR)
- Financial stocks get compared to XLF (Financial Select Sector SPDR)
- Healthcare stocks get compared to XLV (Health Care Select Sector SPDR)
This happens instantly when you add the indicator to any chart - no configuration needed.
2. SECTOR & MARKET BENCHMARKS
What is a Sector ETF?
A sector ETF is an exchange-traded fund that tracks a specific industry group. For example, XLK contains all major technology companies. By comparing your stock to its sector ETF, you can see if your stock is outperforming or underperforming its peers.
The indicator shows three key comparison points:
Stock vs Sector (Benchmark)
This tells you how your stock performs compared to companies in the same industry. Positive numbers mean your stock is beating the sector average. Negative numbers mean it's lagging behind.
Stock vs Market (SPY)
This shows performance against the broader S&P 500 index. This is important because even if a stock beats its sector, the entire sector might be weak. You want stocks that beat both their sector AND the market.
Sector vs Market
This reveals "sector rotation" - whether money is flowing into or out of this sector. When this number is positive, the whole sector is hot and leading the market. This is powerful because strong sectors tend to lift all boats, making it easier to find winners.
3. MULTI-PERIOD PERFORMANCE ANALYSIS
The indicator calculates performance across four timeframes simultaneously:
1 Month (1M) - Recent short-term momentum
3 Months (3M) - Medium-term trend strength
6 Months (6M) - Longer-term positioning
1 Year (1Y) - Full-cycle performance view
Why multiple periods matter:
A stock might look great over 1 month but terrible over 6 months - that's a red flag. The best stocks show consistent strength across all timeframes . When you see positive RS (Relative Strength) values across all four periods, you've found a stock with sustained outperformance.
Each row in the table shows:
- Raw performance percentage for that period
- RS value (the difference compared to benchmark)
- Color coding: Green for positive, red for negative, white for neutral
4. SECTOR LEADER COMPARISON
The indicator automatically identifies and compares your stock to the sector leader - the dominant stock in that industry.
Sector leaders by industry:
Technology: Apple (AAPL)
Healthcare: UnitedHealth (UNH)
Financial: JPMorgan Chase (JPM)
Energy: ExxonMobil (XOM)
Consumer Discretionary: Amazon (AMZN)
Consumer Staples: Walmart (WMT)
And more...
Why this matters:
Comparing to the leader shows you if you're trading a champion or a follower. If your stock consistently beats the sector leader, you've found something special. If it's lagging the leader, you might want to trade the leader instead.
Optional Custom Leader:
You can override the automatic leader and compare to any stock you choose. This is useful if you want to benchmark against a specific competitor or reference stock.
NEW! INDUSTRY ANALYSIS (STOCKS ONLY)
The indicator now provides multi-level analysis by automatically detecting and comparing your stock to its specific industry , not just the broad sector.
Why Industry matters:
Technology sector (XLK) contains many different industries: Software, Semiconductors, Hardware, etc. A software stock might beat the broad tech sector but lag behind other software companies. Industry analysis provides this granular view.
Industry ETF Mapping (30+ industries):
Software/Applications: IGV (iShares Software ETF)
Semiconductors: SMH (VanEck Semiconductor ETF)
Biotech: IBB (iShares Biotechnology ETF)
Pharmaceuticals: XPH (SPDR Pharmaceuticals ETF)
Banks: KBE (SPDR S&P Bank ETF)
Regional Banks: KRE (SPDR Regional Banking ETF)
Oil & Gas Exploration: XOP (SPDR Oil & Gas Exploration ETF)
Homebuilders: XHB (SPDR Homebuilders ETF)
Retail: XRT (SPDR S&P Retail ETF)
Aerospace & Defense: ITA (iShares U.S. Aerospace & Defense ETF)
And many more...
Industry Leader Mapping:
The indicator also identifies the leader within each industry:
Software: Microsoft (MSFT)
Semiconductors: NVIDIA (NVDA)
Biotech: Amgen (AMGN)
Pharmaceuticals: Eli Lilly (LLY)
Banks: JPMorgan (JPM)
Oil Exploration: ConocoPhillips (COP)
And more...
New Table Rows for Stocks:
Industry ETF Performance - How the specific industry performed (green background)
Industry Leader Performance - How the top stock in the industry performed
vs Industry RS - Your stock's outperformance vs its industry ETF
Industry vs Sector RS - Is this industry hot or cold within its sector?
vs Industry Leader RS - Your stock's performance vs the industry's best
Why this is powerful:
A stock that beats both its sector AND its industry is showing strength at every level. This indicates true relative strength, not just riding sector-wide momentum.
Optional Custom Industry:
You can override automatic detection for both Industry ETF and Industry Leader in settings.
5. RS SCORE & GRADING SYSTEM (0-100)
The heart of the indicator is the RS Score - a weighted calculation that distills all the performance data into one clear number from 0 to 100.
How the score is calculated:
FOR STOCKS (with Industry data):
The indicator splits the weight between Sector (60%) and Industry (40%):
SECTOR RS (60% of total weight):
1 Month RS: 24% weight (40% × 0.6)
3 Month RS: 18% weight (30% × 0.6)
6 Month RS: 12% weight (20% × 0.6)
1 Year RS: 6% weight (10% × 0.6)
INDUSTRY RS (40% of total weight):
1 Month RS: 16% weight (40% × 0.4)
3 Month RS: 12% weight (30% × 0.4)
6 Month RS: 8% weight (20% × 0.4)
1 Year RS: 4% weight (10% × 0.4)
FOR OTHER ASSETS (Crypto, Forex, Commodities):
Uses full 100% weight on benchmark:
1 Month RS: 40% weight
3 Month RS: 30% weight
6 Month RS: 20% weight
1 Year RS: 10% weight
It starts at 50 (neutral) and adds or subtracts points based on your asset's relative strength in each period.
Bonus points:
+5 points if the sector is outperforming the market (sector rotation is bullish)
+5 points if the industry is outperforming its sector (hot industry) - STOCKS ONLY
+5 points if RS momentum is improving (getting stronger over time)
-5 points if RS momentum is declining (getting weaker)
The final score is capped between 0-100.
Letter Grade System:
90-100: A+ - Elite performer, crushing the sector
85-89: A - Excellent, strong outperformer
80-84: A- - Very good, above average
75-79: B+ - Good, solid performer
70-74: B - Above average, decent strength
65-69: B- - Slightly above average
60-64: C+ - Average, neutral strength
55-59: C - Below average
50-54: C- - Weak, slight underperformance
45-49: D+ - Concerning weakness
40-44: D - Poor, significant underperformance
0-39: F - Failing, avoid this stock
What scores mean for trading:
- RS Score above 70: Strong stocks worth considering for long positions
- RS Score 50-70: Average stocks, better opportunities elsewhere
- RS Score below 50: Weak stocks, avoid or consider for shorts
6. CONSISTENCY SCORE
This metric shows what percentage of time periods show positive RS .
For STOCKS (with Industry data):
Counts both Sector RS periods AND Industry RS periods (up to 8 total periods):
- If a stock beats both sector and industry in all 4 periods each: Consistency = 100% (8/8)
- If it beats in 6 out of 8 total periods: Consistency = 75%
- If it beats in 4 out of 8 total periods: Consistency = 50%
For OTHER ASSETS:
Counts benchmark periods only (4 total):
- If it beats benchmark in all 4 periods (1M, 3M, 6M, 1Y): Consistency = 100%
- If it beats in 3 out of 4 periods: Consistency = 75%
- If it beats in 2 out of 4 periods: Consistency = 50%
Why consistency matters:
A high RS Score with low consistency might indicate a recent spike that could fade. The best stocks show both high RS Score AND high consistency - they're strong now AND have been strong historically at both the sector AND industry level.
Look for stocks with:
Consistency above 75%: Very reliable strength across all levels
Consistency 50-75%: Decent but check other metrics
Consistency below 50%: Weak or erratic, proceed with caution
7. BETA CALCULATION (Volatility Measure)
Beta measures how much more volatile your stock is compared to its sector.
Beta > 1.2 : High volatility - stock moves more aggressively than sector (marked as "High")
Beta 0.8-1.2 : Normal volatility - moves roughly in line with sector
Beta < 0.8 : Low volatility - stock is more stable than sector (marked as "Low")
Formula used:
Beta = Correlation(Stock, Sector) × (Standard Deviation of Stock / Standard Deviation of Sector)
This uses a 20-period calculation for reliability.
How to use Beta:
- High Beta stocks offer bigger gains but also bigger risks - good for aggressive traders
- Low Beta stocks are more defensive - good for conservative positions
- Match Beta to your risk tolerance and strategy
8. DAYS ABOVE/BELOW SECTOR
This tracks consecutive periods (bars) where your stock outperforms or underperforms its sector.
Days Above Sector:
Counts how many bars in a row your stock has beaten the sector.
10+ days: Strong sustained strength (shown in bright green)
5-9 days: Building momentum (shown in yellow)
1-4 days: Early strength (shown in white)
0 days: Not currently outperforming
Days Below Sector:
Counts how many bars in a row your stock has lagged the sector.
10+ days: Sustained weakness (shown in bright red)
5-9 days: Losing momentum (shown in orange)
1-4 days: Minor weakness (shown in white)
0 days: Not underperforming (this is good!)
Why this matters:
Long streaks show trend persistence. A stock with 15+ days above sector is riding strong momentum. A stock with 15+ days below sector is in a sustained downtrend relative to peers.
9. PRICE VS 52-WEEK HIGH
Shows where current price sits relative to its 52-week high (or equivalent for your timeframe).
95%+ (green) : Stock is near all-time highs - strong positioning
80-94% (yellow) : Stock is in a pullback but still relatively strong
Below 80% : Stock has pulled back significantly from highs
Why this matters:
The strongest stocks stay near their highs. When you see a stock with high RS Score AND price near 52W high, you've found a stock with institutional support and strong buying pressure.
10. RELATIVE VOLUME
Compares current volume to the 20-period average volume.
1.5x+ (green) : High volume - significant interest and participation
Around 1.0x : Average volume - normal trading activity
Below 1.0x : Low volume - less interest or inactive period
Why volume matters:
High relative volume confirms price moves. When a stock makes a strong move on 2x or 3x normal volume, it's more likely to sustain. Low volume moves are often just noise.
11. AVERAGE RS STRENGTH
This calculates the average absolute value of all RS readings across the four timeframes.
It shows the magnitude of divergence from the sector, regardless of direction. A high number means the stock moves very differently from its sector (could be much stronger or much weaker). A low number means it tracks closely with the sector.
High Average RS: Stock has strong character, moves independently
Low Average RS: Stock follows sector closely, lacks individual strength
12. SECTOR ROTATION SIGNAL
This indicator automatically detects when a sector is experiencing bullish rotation - meaning money is flowing into the sector and it's outperforming the broader market.
Condition for bullish rotation:
Sector must be beating SPY (market) in both 1-month AND 3-month periods.
Why this matters:
Stocks in hot sectors tend to perform better because they have tailwinds from sector-wide buying. When sector rotation is bullish and your stock has a high RS Score, you've found an ideal setup.
The indicator adds +5 bonus points to the RS Score when sector rotation is bullish.
13. MOMENTUM DETECTION
The indicator compares 1-month RS to 3-month RS to detect if momentum is improving or declining.
RS Momentum Improving: 1M RS is better than 3M RS - stock is getting stronger (adds +5 to score)
RS Momentum Declining: 1M RS is worse than 3M RS - stock is getting weaker (subtracts -5 from score)
Why momentum matters:
You want to catch stocks as momentum is building, not after it's already peaked. Improving momentum suggests the strength is accelerating, not fading.
14. OVERALL ASSESSMENT & RECOMMENDATION
The indicator provides two quick summary rows:
Overall Rating:
Based on grade and RS Score, you get an instant quality rating:
Strong Leader (A/A+) - Top tier stock, crushing it
Above Average (A-/B+) - Solid performer, better than most
Average (B/B-) - Middle of the pack
Below Average (C/C+) - Struggling, watch carefully
Underperformer (D/F) - Weak stock, underperforming badly
Trading Signal:
Combines multiple factors to give setup quality:
STRONG BUY SETUP - RS Score 70+, Consistency 75+, AND sector rotation bullish. This is the perfect storm - strong stock, consistent strength, hot sector.
BULLISH - RS Score 60+, Consistency 50+. Good quality stock worth considering.
NEUTRAL - RS Score 50+. Okay but not exciting, better opportunities exist.
WEAK - RS Score 40-49. Below average, risky.
AVOID - RS Score below 40. Stay away, too weak.
IMPORTANT: These are educational signals only, not financial advice. Always do your own analysis and risk management.
KEY FEATURES
1. AUTOMATIC EVERYTHING
- Auto-detects asset type (stock, crypto, forex, commodity, index)
- Auto-maps stocks to correct sector ETF (11 sectors covered)
- Auto-maps stocks to correct industry ETF (30+ industries covered)
- Auto-identifies sector leader AND industry leader
- Auto-selects appropriate market benchmark
- Zero configuration required - just add to chart
2. MULTI-ASSET SUPPORT
Works on all asset classes:
US Stocks - Compares to sector ETFs (XLK, XLF, XLV, etc.)
Crypto - Compares to Total Crypto Market Cap
Forex - Compares to currency indices (DXY, EXY, etc.)
Commodities - Compares to Gold (GLD)
Indices - Compares to broader market benchmarks
3. FLEXIBLE DISPLAY
9 table positions (top/middle/bottom, left/center/right)
4 size options (tiny, small, normal, large)
Show/hide table completely
Real-time indicator toggle
4. TIMEFRAME FLEXIBILITY
Choose your analysis timeframe:
Chart Timeframe (default) - Uses whatever timeframe your chart is on
Fixed: 1 Hour, 4 Hours, Daily, Weekly - Forces calculations to specific timeframe
This means you can be on a 5-minute chart but analyze RS on Daily timeframe if you prefer.
5. RS SCORE FILTERING
Set a minimum RS Score threshold to only see strong stocks:
Set to 0 - Shows all stocks
Set to 70 - Only displays stocks with RS Score 70+ (strong stocks only)
Warning message displays if stock doesn't meet threshold
Perfect for screening - quickly scan multiple charts and the indicator only shows tables for stocks that pass your quality filter.
6. CUSTOM LEADER COMPARISON
Override automatic leader detection:
Compare to any ticker you choose
Benchmark against specific competitors
Use your own reference stocks
7. COMPREHENSIVE TOOLTIPS
Every input parameter and every table row has detailed tooltips explaining:
What the metric measures
How to interpret the values
What thresholds indicate strength/weakness
Why it matters for trading
Hover over any element to learn - it's like having a trading coach built in.
8. SMART ALERTS
Built-in alert system for key events:
Divergence Alerts:
Get notified when your stock diverges significantly from its sector.
Bullish Divergence: Stock beating sector by threshold percentage
Bearish Divergence: Stock losing to sector by threshold percentage
Set your threshold (default 5%) - this determines how big a divergence triggers the alert.
RS Score Alerts:
Get notified when RS Score crosses your threshold:
Crossed Above: RS Score went from below to above your threshold (bullish)
Crossed Below: RS Score dropped from above to below threshold (bearish)
Set your threshold (default 70) to focus on strong stocks.
Sector Rotation Alert:
Fires when sector shows bullish rotation (outperforming market).
HOW TO USE THE INDICATOR
FOR SWING TRADERS:
1. Add indicator to your watchlist stocks
2. Look for RS Score 70+ with Consistency 75%+
3. Check if sector rotation is bullish (bonus!)
4. Verify price is near 52W high (95%+)
5. Wait for entry setup on your chart
6. Use stop loss below key support
Example Setup:
Stock shows:
- RS Score: 82 (Grade: A-)
- Consistency: 100% (strong across all periods)
- Sector Rotation: Bullish
- Price vs 52W High: 96%
- Days Above Sector: 12 days
- Relative Volume: 1.8x
This is a textbook strong stock in a hot sector near highs - ideal for swing long.
FOR POSITION TRADERS:
1. Focus on 6-month and 1-year RS values
2. Look for sustained outperformance (Consistency 75%+)
3. Prefer lower Beta stocks (less volatility)
4. Check Days Above Sector for trend persistence
5. Monitor RS Score monthly, exit if drops below 60
FOR ACTIVE TRADERS:
1. Use on intraday timeframes (1H or 4H)
2. Set RS Score filter to 60+ for quick screening
3. Enable Divergence Alerts
4. Watch for momentum improving signal
5. Higher Beta stocks offer more movement
FOR SHORT SELLERS:
1. Look for RS Score below 40 (Grade: D or F)
2. Check for declining momentum
3. Verify Days Below Sector is increasing (10+)
4. Sector rotation should be bearish
5. Price should be well off 52W high
WHAT MAKES A PERFECT SETUP:
The holy grail combination:
RS Score: 75+ (A- or better)
Consistency: 80%+ (strong across time - beats sector AND industry)
Sector Rotation: Bullish (hot sector)
Industry vs Sector: Positive (hot industry within sector)
Days Above Sector: 10+ (sustained strength)
Momentum: Improving (getting stronger)
Price vs 52W High: 90%+ (near highs)
Relative Volume: 1.5x+ (volume confirmation)
When you find this combination, you've located a stock with every advantage in its favor - strong at the stock level, industry level, AND sector level. That's multi-level confirmation of relative strength.
IMPORTANT NOTES
Data Reliability:
All calculations use lookahead=off for anti-repaint protection
Historical values will never change
Real-time indicator toggle only affects the visual clock icon, not data reliability
All security requests are properly configured to prevent future data leakage
Sector Mapping Notes:
Sector detection uses TradingView's sector field
Some stocks may not have sector data - indicator will adapt
Sector ETFs used: XLK, XLF, XLV, XLE, XLY, XLP, XLI, XLB, XLRE, XLU, XLC
Major market ETFs (SPY, QQQ, DIA) are treated as market benchmarks, not stocks
Multi-Asset Notes:
Crypto compares to CRYPTOCAP:TOTAL (total crypto market cap)
Forex compares to relevant currency index based on base currency
Commodities compare to Gold (GLD) as primary commodity benchmark
Custom leaders can be set for any asset type
FREQUENTLY ASKED QUESTIONS
Q: What does RS Score of 75 actually mean?
A: It means your stock is strongly outperforming its sector across multiple timeframes. The score is weighted toward recent performance (1-month gets 40% weight), so 75 indicates sustained relative strength with emphasis on current momentum.
Q: My stock has high RS Score but is going down. Why?
A: RS Score measures relative performance (vs sector/market), not absolute price direction. A stock can fall 5% while its sector falls 10% - that's still positive relative strength. In bear markets or sector corrections, high RS stocks often fall less than peers.
Q: Should I only trade stocks with RS Score above 70?
A: For long positions, yes - focus on 70+ scores. These stocks have proven they can beat their sector. However, for pairs trading or relative value plays, you might also short stocks with scores below 40 while longing stocks above 70.
Q: What if my stock doesn't have a sector?
A: The indicator handles this gracefully. If no sector is detected, it will compare directly to the market (SPY for stocks). Some rows may show N/A, but the indicator will still provide useful market-relative data.
Q: Why does the sector sometimes show N/A?
A: This happens when: 1) Your asset has no sector classification, 2) The stock IS the sector ETF itself, 3) You're analyzing a non-stock asset (crypto, forex, commodity). The indicator adapts by focusing on market-relative metrics instead.
Q: Can I use this on cryptocurrencies?
A: Yes! The indicator automatically detects crypto and compares to the Total Crypto Market Cap (CRYPTOCAP:TOTAL). You can also set a custom leader like Bitcoin (BTCUSD) to compare against the dominant crypto.
Q: What's the difference between RS Score and Consistency?
A: RS Score is the weighted average of how much you're beating the sector (magnitude). Consistency is what percentage of time periods show outperformance (reliability). You want both high - that means strong AND consistent.
Q: Do the alerts repaint?
A: No. All alerts fire only on bar close (barstate.isconfirmed) and use properly configured data with lookahead=off. Once an alert fires, it's final and won't change.
Q: What timeframe should I use?
A: For swing trading: Daily or Weekly. For day trading: 1H or 4H. For position trading: Weekly. Use "Chart Timeframe" mode and switch your chart timeframe to change the analysis period easily.
Q: Why is Days Above Sector showing 0?
A: This means your stock is not currently outperforming its sector. If Days Below Sector is also 0, it means the RS is exactly neutral (very rare). Check the actual RS values to see current standing.
Q: Can I compare to a different market benchmark than SPY?
A: Currently the indicator uses SPY (S&P 500) as the default US stock market benchmark. For crypto it uses CRYPTOCAP:TOTAL, for forex it uses currency indices, etc. The benchmark auto-adjusts based on asset type.
Q: What's a good Beta value?
A: It depends on your strategy. Aggressive traders prefer Beta above 1.2 (more volatility = bigger moves). Conservative traders prefer Beta 0.8-1.0 (more stable). Beta is neutral - it's about matching your risk tolerance.
Q: How often does the table update?
A: With Real-time Indicator enabled: Every tick (constant updates). With it disabled: Only on bar close. Either way, the underlying data is identical and non-repainting - the toggle only affects update frequency and the clock icon display.
Q: My stock is showing "AVOID" but it's up 50% this year. Is the indicator wrong?
A: Not necessarily. The indicator measures RELATIVE performance. If your stock is up 50% but the sector is up 100%, your stock is actually underperforming by 50%. The indicator helps you identify when you should switch to stronger stocks in the same sector.
Q: What does "Strong Buy Setup" really mean?
A: It means three things aligned: 1) RS Score above 70 (strong stock), 2) Consistency above 75% (reliable strength), 3) Sector rotation is bullish (hot sector). This combination historically correlates with stocks that continue outperforming. However, this is NOT financial advice - always do your own analysis.
Q: Can I use this for options trading?
A: Yes! High RS Score stocks make good candidates for call options (bullish bets) while low RS Score stocks may work for puts (bearish bets). Higher Beta stocks will have more volatile options (higher premiums but more movement).
Q: Why is my crypto showing N/A for sector?
A: Cryptocurrencies don't have "sectors" like stocks do. Instead, the indicator compares crypto to the total crypto market cap. This is normal and expected behavior.
Q: What happens if I'm analyzing an ETF?
A: If you're analyzing a sector ETF (like XLK), it will compare to SPY (market). If you're analyzing SPY itself, some comparisons won't be available (can't compare SPY to itself). The indicator intelligently adapts to avoid circular comparisons.
Q: What if my stock doesn't have industry data?
A: Not all stocks are mapped to specific industries (only 30+ major industries are covered). If no industry is detected, the indicator will still work using only sector analysis. The RS Score calculation will use 100% sector weight instead of the 60%/40% split.
Q: Why does Industry vs Sector matter?
A: Industry vs Sector shows if your specific industry is hot or cold within its broader sector. For example, Semiconductors (SMH) might be outperforming Technology sector (XLK) even though both are up. This helps you find not just strong sectors, but the strongest industries within those sectors.
Q: Can I disable Industry analysis?
A: Yes! In the "Industry Analysis" settings group, you can toggle off "Show Industry Analysis in Table" to hide all industry rows. However, even when hidden, industry data still contributes to the RS Score calculation for stocks.
Q: Why is my Consistency Score lower for stocks than other assets?
A: For stocks with industry data, Consistency counts 8 periods (4 Sector + 4 Industry periods) instead of just 4. This means the bar is higher - your stock needs to beat both sector AND industry consistently. A stock that beats sector in all 4 periods but lags industry in 2 periods will show 75% consistency (6/8), not 100%.
BEST PRACTICES
Use as a screening tool - Set RS Score filter to 70+ and quickly scan your watchlist. Only strong stocks will show the table.
Combine with technical analysis - RS Score tells you WHAT to trade, your chart tells you WHEN to enter.
Check multiple timeframes - Switch between Daily and Weekly to see if strength holds across different time horizons.
Monitor sector rotation - When sector goes from bearish to bullish rotation, it's often a great time to enter stocks in that sector.
Watch Industry vs Sector - Stocks in hot industries within hot sectors have double tailwinds. Prioritize Industry vs Sector positive values.
Pay attention to consistency - High RS Score with low consistency might be a spike that fades. Look for 70%+ consistency across BOTH sector and industry.
Use the leader comparison - If your stock consistently beats both sector leader AND industry leader, you may have found the next champion.
Watch days above/below sector - Long streaks (15+ days) indicate strong trends. Look for these in conjunction with high RS Score.
Set alerts on key stocks - Enable RS Score alerts at 70 threshold to get notified when watchlist stocks become strong.
Consider Beta for position sizing - Size smaller positions in high Beta stocks, larger in low Beta stocks for balanced risk.
Exit when RS Score drops - If a stock's RS Score falls below 60, consider reducing or exiting - the strength may be fading.
Leverage industry-level insight - If Industry ETF is weak but stock is strong, that's standout strength. If Industry is hot but stock is lagging, consider switching to the industry leader instead.
SETTINGS EXPLAINED
Display Settings:
Show Performance Table - Master on/off switch for the table
Table Position - 9 positions available (corners, edges, center)
Table Size - 4 sizes (tiny, small, normal, large) for different screen sizes
Timeframe Settings:
Chart Timeframe (recommended) - Dynamic, uses whatever chart TF you're on
Fixed Timeframes - Locks analysis to 1H, 4H, Daily, or Weekly regardless of chart
Filtering Settings:
Minimum RS Score - Set threshold (0-100) for displaying table
Show Warning - When enabled, displays message if stock doesn't meet filter
Alert Settings:
Divergence Alerts - Enable alerts when stock diverges from sector
Threshold (%) - How big a divergence triggers alert (default 5%)
RS Score Alerts - Enable alerts when RS Score crosses threshold
Threshold - What RS Score level triggers alert (default 70)
Sector Analysis Settings:
Use Custom Sector ETF - Override automatic sector ETF detection
Sector ETF Symbol - Enter any sector ETF to compare against
Use Custom Sector Leader - Override automatic sector leader detection
Sector Leader Symbol - Enter any ticker as sector leader
Industry Analysis Settings:
Use Custom Industry ETF - Override automatic industry ETF detection
Industry ETF Symbol - Enter specific industry ETF (e.g., IGV, SMH)
Use Custom Industry Leader - Override automatic industry leader detection
Industry Leader Symbol - Enter specific industry leader
Show Industry Analysis - Toggle all industry rows on/off
Display Settings:
Show Real-time Indicator - Toggle clock icon in header (doesn't affect data)
WHAT THIS INDICATOR DOESN'T DO
To set proper expectations:
Does NOT provide entry/exit signals - this is a strength analyzer, not a trading system
Does NOT predict future price movement - shows current and historical relative strength
Does NOT guarantee profits - strong RS stocks can still decline
Does NOT replace your own analysis - use as one tool among many
Does NOT work on stocks with no sector data - will adapt but some rows show N/A
This indicator is a decision support tool . It helps you identify which stocks are showing relative strength so you can make more informed trading decisions. You still need your own entry strategy, risk management, and position sizing rules.
SUPPORT & CONTACT
Questions or feedback? Use the comments section below or send me a message.
If you find this indicator useful, please give it a boost and share with other traders who might benefit from relative strength analysis.
FINAL REMINDER
This indicator is a tool for analyzing relative strength - it shows you which stocks are outperforming their sector and market. It does NOT provide financial advice or trade signals. Always conduct your own research, manage your risk appropriately, and consult with a financial advisor before making investment decisions.
Past performance of relative strength does not guarantee future results. Strong stocks can become weak, and sectors rotate in and out of favor. Use this indicator as part of a comprehensive trading strategy, not as a standalone decision-making system.
Trade smart, manage risk, and may your RS Scores stay high!
If you got till here and you like my work a BOOST and a COMMENT would make me happy インジケーター
Stochastic + Bollinger Bands Multi-Timeframe StrategyThis strategy fuses the Stochastic Oscillator from the 4-hour timeframe with Bollinger Bands from the 1-hour timeframe, operating on a 10-hour chart to capture a unique volatility rhythm and temporal alignment discovered through observational alpha.
By blending momentum confirmation from the higher timeframe with short-term volatility extremes, the strategy leverages what some traders refer to as “rotating volatility” — a phenomenon where multi-timeframe oscillations sync to reveal hidden trade opportunities.
🧠 Strategy Logic
✅ Long Entry Condition:
Stochastic on the 4H timeframe:
%K crosses above %D
Both %K and %D are below 20 (oversold zone)
Bollinger Bands on the 1H timeframe:
Price crosses above the lower Bollinger Band, indicating a potential reversal
→ A long trade is opened when both momentum recovery and volatility reversion align.
✅ Long Exit Condition:
Stochastic on the 4H:
%K crosses below %D
Both %K and %D are above 80 (overbought zone)
Bollinger Bands on the 1H:
Price reaches or exceeds the upper Bollinger Band, suggesting exhaustion
→ The long trade is closed when either signal suggests a potential reversal or overextension.
🧬 Temporal Structure & Alpha
This strategy is deployed on a 10-hour chart — a non-standard timeframe that may align more effectively with multi-timeframe mean reversion dynamics.
This subtle adjustment exploits what some traders identify as “temporal drift” — the desynchronization of volatility across timeframes that creates hidden rhythm in price action.
→ For example, Stochastic on 4H (lookback 17) and Bollinger Bands on 1H (lookback 20) may periodically sync around 10H intervals, offering unique alpha windows.
📊 Indicator Components
🔹 Stochastic Oscillator (4H, Length 17)
Detects momentum reversals using %K and %D crossovers
Helps define overbought/oversold zones from a mid-term view
🔹 Bollinger Bands (1H, Length 20, ±2 StdDev)
Measures price volatility using standard deviation around a moving average
Entry occurs near lower band (support), exits near upper band (resistance)
🔹 Multi-Timeframe Logic
Uses request.security() to safely reference 4H and 1H indicators from a 10H chart
Avoids repainting by using closed higher-timeframe candles only
📈 Visualization
A plot selector input allows toggling between:
Stochastic Plot (%K & %D, with overbought/oversold levels)
Bollinger Bands Plot (Upper, Basis, Lower from 1H data)
This helps users visually confirm entry/exit triggers in real time.
🛠 Customization
Fully configurable Stochastic and BB settings
Timeframes are independently adjustable
Strategy settings like position sizing, slippage, and commission are editable
⚠️ Disclaimer
This strategy is intended for educational and informational purposes only.
It does not constitute financial advice or a recommendation to buy or sell any asset.
Market conditions vary, and past performance does not guarantee future results.
Always test any trading strategy in a simulated environment and consult a licensed financial advisor before making real-world investment decisions. ストラテジー
Turtles StrategyBorn from the 1980s "Turtle" experiment, this method of trading captures breakouts and places or closes trades with intrabar entries or exits and realized-equity risk controls.
How It Works
The strategy buys/sells on breakouts from recent highs/lows, using ATR for volatility-adjusted stops and sizing. It risks a fixed % (default 1%) of realized equity per trade—initial capital plus closed P&L, ignoring open positions for conservatism. Drawdown protection auto-reduces risk by 20% at 10% drops (up to three times), resetting only on full peak recovery. Single positions only, with 1-tick slippage simulated for realistic fills. Best for trending assets like forex,commodities, crypto, stocks. Backtest for optimal parameters.
Main Operations
The strategy works on any timeframe but it's meant to be used on daily charts.
Entry Signals:
Long: Buy-stop 1 tick above 20-bar high (default "Entry Period") when no position—enters intrabar on breakout.
Short: Sell-stop 1 tick below 20-bar low. OCA cancels opposites.
Size: (Realized equity × adjusted risk %) ÷ (2× ATR stop distance), scaled by point value.
Exit Signals:
Longs: Stop at tighter of (entry - 2× ATR) or (10-bar low - 1 tick trailing, default "Exit Period").
Shorts: Stop at tighter of (entry + 2× ATR) or (10-bar high + 1 tick trailing).
Locks profits in trends, exits fast on fades.
Risk Controls:
Tracks realized equity peak.
10% drawdown: Risk ×0.8; 20%/30%: Further ×0.8 (max 3x).
Full reset above peak—preserves capital in slumps. ストラテジー
Bollinger Band ToolkitBollinger Band Toolkit
An advanced, adaptive Bollinger Band system for traders who want more context, precision, and edge.
This indicator expands on the classic Bollinger Bands by combining statistical and volatility-based methods with modern divergence and squeeze detection tools. It helps identify volatility regimes, potential breakouts, and early momentum shifts — all within one clean overlay.
🔹 Core Features
1. Adaptive Bollinger Bands (σ + ATR)
Classic 20-period bands enhanced with an ATR-based volatility adjustment, making them more responsive to true market movement rather than just price variance.
Reduces “overreacting” during chop and avoids bands collapsing too tightly during trends.
2. %B & RSI Divergence Detection
🟢 Green dots: Positive %B divergence — price makes a lower low, but %B doesn’t confirm (bullish).
🔴 Red dots: Negative %B divergence — price makes a higher high, but %B doesn’t confirm (bearish).
✚ Red/green crosses: RSI divergence confirmation — momentum fails to confirm the price’s new extreme.
These signals highlight potential reversal or slowdown zones that are often invisible to the naked eye.
3. Bollinger Band Squeeze (with Volume Filter)
Yellow squares (■) show periods when Bollinger Bands are at their narrowest relative to recent history.
Volume confirmation ensures the squeeze only triggers when both volatility and participation contract.
Often marks the “calm before the storm” — breakout potential zones.
4. Multi-Timeframe Breakout Markers
Optionally displays breakouts from higher or lower timeframes using different colors/symbols.
Lets you see when a higher timeframe band break aligns with your current chart — a strong trend continuation signal.
5. Dual- and Triple-Band Visualization (±1σ, ±2σ, ±3σ)
Optional inner (±1σ) and outer (±3σ) bands provide a layered volatility map:
Price holding between ±1σ → stable range / mean-reverting behavior
Price riding near ±2σ → trending phase, sustained momentum
Price touching or exceeding ±3σ → volatility expansion or exhaustion zone
This triple-band layout visually distinguishes normal movement from statistical extremes, helping you read when the market is balanced, expanding, or approaching its limits.
⚙️ Inputs & Customization
Choose band type (SMA/EMA/SMMA/WMA/VWMA)
Adjust deviation multiplier (σ) and ATR multiplier
Toggle individual features (divergence dots, squeeze markers, inner bands, etc.)
Multi-timeframe and colour controls for advanced users
🧠 How to Use
Watch for squeeze markers followed by a breakout bar beyond ±2σ → volatility expansion signal.
Combine divergence dots with RSI or price structure to anticipate slowdowns or reversals.
Confirm direction using multi-timeframe breakouts and volume expansion.
💬 Why It Works
This toolkit transforms qualitative chart reading (tight bands, hidden divergence) into quantitative, testable conditions — giving you objective insights that can be backtested, coded, or simply trusted in live setups. インジケーター
REMS First Strike OverlayThe REMS First Strike indicator is a multi-factor, confluence-based system that combines momentum (RSI, Stochastic RSI), trend (EMA, MACD), and optional filters (volume, MACD histogram, session time) to identify high-probability trade setups. Signals are only triggered when all enabled conditions align, giving the trader a filtered, visually clear entry signal.
This indicator uses an optional 'cool down' feature where in it will signal an entry only after any of the specified cross events occur.
To use the indicator, select which technical indicators you wish to filter, the session you wish to apply (default is 9:30am - 4pm EST, based on your chart time settings), and if which cross events you wish to trigger a reset on the cooldown.
The default settings filter the 4 major technical indicators (RSI, EMAs, MACD, Stochastic RSI) but optional filters exist to further fine tune Stochastic Range, MACD momentum and strength, and volume, with optional visual cues for MACD position, Stochastic RSI position, and volume.
EMAs can be drawn on the chart from this indicator with optional shaded background.
This indicator is an alternative to REMS Snap Shot, which uses a recency filter instead of a cool down. インジケーター
インジケーター
Opening Range Breakout Detector📈 Opening Range Breakout Detector (TF-Independent)
Tracks breakouts with precision. No matter the chart, no matter the timeframe.
This indicator monitors whether price breaks above or below the Opening Range across multiple key durations — 1m, 5m, 10m, 15m, 30m, 45m, and 60m — using 1-minute data under the hood, while you can work on higher timeframe charts (daily, etc.).
Highlights:
✅ Status table shows which ORs broke UP or DOWN
⏱ Control which timeframes to track
🖼 Customizable table position, size and colors
Crafted by @FunkyQuokka インジケーター
インジケーター
TriTrend Nexus[BullByte]TriTrend Nexus is a comprehensive market analysis tool that consolidates three well-established signals into a single, easy-to-read interface. It is designed to help traders quickly assess the market’s current condition and make more informed decisions about potential trend shifts.
Key Features and Functionality
Composite Signal System
Multi-Faceted Approach :
The indicator combines insights from three distinct market signals into one composite score. This approach provides a more holistic view of market conditions compared to relying on a single indicator.
Clear Classification :
Based on the composite score, TriTrend Nexus categorizes the market into:
Strong Signals : When all three underlying conditions are met, indicating a robust and established trend.
Early Signals : When two out of the three conditions are met, offering an early hint of a potential trend.
Neutral/Choppy : When conditions are ambiguous or conflicting, suggesting a lack of clear market direction.
Trend Qualifiers :
In addition to the composite score, the indicator subtly refines its signal by noting whether a trend is “Rising” or “Fading.” This further aids traders in understanding the momentum behind the signal.
Dynamic Signal Identification
Timely Alerts :
By analyzing the composite data in real time, the indicator quickly identifies when market conditions shift, offering early warning signals that help traders stay ahead of the market.
Adaptive Analysis :
The built-in signal assessment continuously monitors market changes. Whether the market is in the early stages of a move or firmly committed to a trend, TriTrend Nexus adapts its messaging to reflect the evolving conditions.
User-Friendly Dashboard
Integrated Display :
A customizable dashboard provides an at-a-glance summary of key metrics. Users can choose between a detailed view for comprehensive insights or a compact version for a streamlined experience.
Key Metrics Displayed :
Primary Signal : The overall market status, such as “Bullish Strong” or “Bearish Early.”
Composite Nexus Score : A numerical value representing the strength of the current market conditions.
Supporting Data : Essential values that help explain the current signal without overwhelming the trader.
Easy Interpretation :
The dashboard is designed with clarity in mind. Clear labeling and a consistent layout ensure that even traders new to composite indicators can quickly interpret the displayed information.
Visual Clarity and Aesthetic
Color-Coded Signals :
The indicator uses a vibrant color scheme to highlight market conditions:
Bright Green : Signifies a strong bullish trend.
Light Green : Indicates an emerging bullish trend.
Red : Represents a strong bearish trend.
Light Red/Pink : Denotes an early bearish signal.
Gray : Used when market conditions are neutral or choppy.
Graphical Enhancements :
The plotted oscillator visually reinforces the signal classifications with dynamic color transitions. Horizontal markers provide reference points to help traders easily compare the current readings against standard levels.
Customization Options
Adjustable Settings :
Traders can personalize the indicator by modifying input settings such as sensitivity thresholds and period lengths. This flexibility allows the tool to adapt to different market environments and trading styles.
Dashboard Flexibility :
The option to toggle between a full dashboard and a shorter version means that both novice and experienced traders can configure the display to best suit their needs. A more detailed dashboard offers extensive insights, while the compact mode provides a minimalist view for those who prefer simplicity.
Tailored User Experience :
With multiple adjustable parameters, users can fine-tune the indicator to respond precisely to their preferred timeframes and market conditions. This adaptability makes TriTrend Nexus a versatile tool for various trading strategies.
Benefits for Traders
Quick and Informed Decision-Making :
With a single glance at the dashboard and visual cues from the oscillator, traders can quickly gauge whether the market is poised for a strong move, is in the early stages of a trend, or is too volatile for clear signals. This helps in planning timely entries and exits.
Enhanced Market Insight :
By integrating multiple perspectives into one coherent score, the indicator filters out market noise and highlights the prevailing trend more reliably. This can be particularly useful during periods of market uncertainty.
Reduced Analysis Time:
The combination of clear, color-coded signals and an intuitive dashboard reduces the time spent analyzing various individual indicators, allowing traders to focus more on strategy execution.
Customization for Diverse Strategies :
The ability to adjust various input parameters and the dashboard layout ensures that traders can tailor the tool to fit their unique analysis style and market conditions, making it a versatile addition to any trading toolkit.
User-Friendly Interface :
Even for those who are not technically inclined, the clear visual design and straightforward signal descriptions make it easy to understand the current market situation without needing to interpret complex data. インジケーター
Volume Block Order AnalyzerCore Concept
The Volume Block Order Analyzer is a sophisticated Pine Script strategy designed to detect and analyze institutional money flow through large block trades. It identifies unusually high volume candles and evaluates their directional bias to provide clear visual signals of potential market movements.
How It Works: The Mathematical Model
1. Volume Anomaly Detection
The strategy first identifies "block trades" using a statistical approach:
```
avgVolume = ta.sma(volume, lookbackPeriod)
isHighVolume = volume > avgVolume * volumeThreshold
```
This means a candle must have volume exceeding the recent average by a user-defined multiplier (default 2.0x) to be considered a significant block trade.
2. Directional Impact Calculation
For each block trade identified, its price action determines direction:
- Bullish candle (close > open): Positive impact
- Bearish candle (close < open): Negative impact
The magnitude of impact is proportional to the volume size:
```
volumeWeight = volume / avgVolume // How many times larger than average
blockImpact = (isBullish ? 1.0 : -1.0) * (volumeWeight / 10)
```
This creates a normalized impact score typically ranging from -1.0 to 1.0, scaled by dividing by 10 to prevent excessive values.
3. Cumulative Impact with Time Decay
The key innovation is the cumulative impact calculation with decay:
```
cumulativeImpact := cumulativeImpact * impactDecay + blockImpact
```
This mathematical model has important properties:
- Recent block trades have stronger influence than older ones
- Impact gradually "fades" at rate determined by decay factor (default 0.95)
- Sustained directional pressure accumulates over time
- Opposing pressure gradually counteracts previous momentum
Trading Logic
Signal Generation
The strategy generates trading signals based on momentum shifts in institutional order flow:
1. Long Entry Signal: When cumulative impact crosses from negative to positive
```
if ta.crossover(cumulativeImpact, 0)
strategy.entry("Long", strategy.long)
```
*Logic: Institutional buying pressure has overcome selling pressure, indicating potential upward movement*
2. Short Entry Signal: When cumulative impact crosses from positive to negative
```
if ta.crossunder(cumulativeImpact, 0)
strategy.entry("Short", strategy.short)
```
*Logic: Institutional selling pressure has overcome buying pressure, indicating potential downward movement*
3. Exit Logic: Positions are closed when the cumulative impact moves against the position
```
if cumulativeImpact < 0
strategy.close("Long")
```
*Logic: The original signal is no longer valid as institutional flow has reversed*
Visual Interpretation System
The strategy employs multiple visualization techniques:
1. Color Gradient Bar System:
- Deep green: Strong buying pressure (impact > 0.5)
- Light green: Moderate buying pressure (0.1 < impact ≤ 0.5)
- Yellow-green: Mild buying pressure (0 < impact ≤ 0.1)
- Yellow: Neutral (impact = 0)
- Yellow-orange: Mild selling pressure (-0.1 < impact ≤ 0)
- Orange: Moderate selling pressure (-0.5 < impact ≤ -0.1)
- Red: Strong selling pressure (impact ≤ -0.5)
2. Dynamic Impact Line:
- Plots the cumulative impact as a line
- Line color shifts with impact value
- Line movement shows momentum and trend strength
3. Block Trade Labels:
- Marks significant block trades directly on the chart
- Shows direction and volume amount
- Helps identify key moments of institutional activity
4. Information Dashboard:
- Current impact value and signal direction
- Average volume benchmark
- Count of significant block trades
- Min/Max impact range
Benefits and Use Cases
This strategy provides several advantages:
1. Institutional Flow Detection: Identifies where large players are positioning themselves
2. Early Trend Identification: Often detects institutional accumulation/distribution before major price movements
3. Market Context Enhancement: Provides deeper insight than simple price action alone
4. Objective Decision Framework: Quantifies what might otherwise be subjective observations
5. Adaptive to Market Conditions: Works across different timeframes and instruments by using relative volume rather than absolute thresholds
Customization Options
The strategy allows users to fine-tune its behavior:
- Volume Threshold: How unusual a volume spike must be to qualify
- Lookback Period: How far back to measure average volume
- Impact Decay Factor: How quickly older trades lose influence
- Visual Settings: Labels and line width customization
This sophisticated yet intuitive strategy provides traders with a window into institutional activity, helping identify potential trend changes before they become obvious in price action alone.
ストラテジー
Fakeout, Breakout & Trend Switch Detector - TrendPredator FOTrendPredator Fakeout Highlighter (FO)
The TrendPredator Fakeout Highlighter is designed to enhance multi-timeframe trend analysis by identifying key market behaviors that indicate trend strength, weakness, and potential reversals. Inspired by Stacey Burke’s trading approach, this tool focuses on trend-following, momentum shifts, and trader traps, helping traders capitalize on high-probability setups.
At its core, this indicator highlights peak formations—anchor points where price often locks in trapped traders before making decisive moves. These principles align with George Douglas Taylor’s 3-day cycle and Steve Mauro’s BTMM method, making the FO Highlighter a powerful tool for reading market structure. As markets are fractal, this analysis works on any timeframe.
How It Works
The TrendPredator FO highlights key price action signals by coloring candles based on their bias state on the current timeframe.
It tracks four major elements:
Breakout/Breakdown Bars – Did the candle close in a breakout or breakdown relative to the last candle?
Fakeout Bars (Trend Close) – Did the candle break a prior high/low and close back inside, but still in line with the trend?
Fakeout Bars (Counter-Trend Close) – Did the candle break a prior high/low, close back inside, and against the trend?
Switch Bars – Did the candle lose/ reclaim the breakout/down level of the last bar that closed in breakout/down, signalling a possible trend shift?
Reading the Trend with TrendPredator FO
The annotations in this example are added manually for illustration.
- Breakouts → Strong Trend
Multiple candles closing in breakout signal a healthy and strong trend.
- Fakeouts (Trend Close) → First Signs of Weakness
Candles that break out but close back inside suggest a potential slowdown—especially near key levels.
- Fakeouts (Counter-Trend Close) → Stronger Reversal Signal
Closing against the trend strengthens the reversal signal.
- Switch Bars → Momentum Shift
A shift in trend is confirmed when price crosses back through the last closed breakout candles breakout level, trapping traders and fuelling a move in the opposite direction.
- Breakdowns → Trend Reversal Confirmed
Once price breaks away from the peak formation, closing in breakdown, the trend shift is validated.
Customization & Settings
- Toggle individual candle types on/off
- Customize colors for each signal
- Set the number of historical candles displayed
Example Use Cases
1. Weekly Template Analysis
The weekly template is a core concept in Stacey Burke’s trading style. FO highlights individual candle states. With this the state of the trend and the developing weekly template can be evaluated precisely. The analysis is done on the daily timeframe and we are looking especially for overextended situations within a week, after multiple breakouts and for peak formations signalling potential reversals. This is helpful for thesis generation before a session and also for backtesting. The annotations in this example are added manually for illustration.
📈 Example: Weekly Template Analysis snapshot on daily timeframe
2. High Timeframe 5-Star Setup Analysis (Stacey Burke "ain't coming back" ACB Template)
This analysis identifies high-probability trade opportunities when daily breakout or down closes occur near key monthly levels mid-week, signalling overextensions and potentially large parabolic moves. Key signals for this are breakout or down closes occurring on a Wednesday. This is helpful for thesis generation before a session and also for backtesting. The annotations in this example are added manually for illustration. Also an indicator can bee seen on this chart shading every Wednesday to identify the signal.
📉 Example: High Timeframe Setup snapshot
3. Low Timeframe Entry Confirmation
FO helps confirm entry signals after a setup is identified, allowing traders to time their entries and exits more precisely. For this the highlighted Switch and/ or Fakeout bars can be highly valuable.
📊 Example (M15 Entry & Exit): Entry and Exit Confirmation snapshot
📊 Example (M5 Scale-In Strategy): Scaling Entries snapshot
The annotations in this examples are added manually for illustration.
Disclaimer
This indicator is for educational purposes only and does not guarantee profits.
None of the information provided shall be considered financial advice.
Users are fully responsible for their trading decisions and outcomes. インジケーター
RSI & DPO support/resistanceThis indicator combines the Relative Strength Index (RSI) to identify overbought and oversold conditions with the Detrended Price Oscillator (DPO) to highlight support and resistance levels.
Unlike traditional indicators that display these metrics in a separate window, this tool integrates them directly onto the main price chart.
This allows for a more cohesive analysis, enabling traders to easily visualize the relationship between price movements and momentum indicators in one unified view.
How to Use It:
Identify Overbought and Oversold Conditions:
Look for RSI values above 70 to identify overbought conditions, suggesting a potential price reversal or pullback. Conversely, RSI values below 30 indicate oversold conditions, which may signal a potential price bounce or upward movement.
Analyze Support and Resistance Levels:
Observe the DPO lines on the main chart to identify key support and resistance levels. When the price approaches these levels, it can provide insights into potential price reversals or breakouts.
Combine Signals for Trading Decisions:
Use the RSI and DPO signals together to make informed trading decisions. For example, if the RSI indicates an overbought condition while the price is near a resistance level identified by the DPO, it may be a good opportunity to consider selling or taking profits.
Monitor Divergences:
Watch for divergences between the RSI and price movements. If the price is making new highs while the RSI is not, it could indicate weakening momentum and a potential reversal.
Set Alerts:
Consider setting alerts for when the RSI crosses above or below the overbought or oversold thresholds, or when the price approaches significant support or resistance levels indicated by the DPO.
Practice Risk Management:
Always use proper risk management techniques, such as setting stop-loss orders and position sizing, to protect your capital while trading based on these indicators.
By following these steps, traders can effectively utilize this indicator to enhance their market analysis and improve their trading strategies. インジケーター
Relative Strength and MomentumRelative Strength and Momentum Indicator
Unlock deeper market insights with the Relative Strength and Momentum Indicator—a powerful tool designed to help traders and investors identify the strongest stocks and sectors based on relative performance. This custom indicator displays essential information on relative strength and momentum for up to 15 different symbols, compared against a benchmark index, all within a clear and organized table format.
Key Features:
1. Customizable Inputs: Choose up to 15 symbols to compare, along with a benchmark index, allowing you to tailor the indicator to your trading strategy. The 'Lookback Period' input defines how many weeks of data are analyzed for relative strength and momentum.
2. Relative Strength Calculation: For each selected symbol, the indicator calculates the Relative Strength (RS) against the chosen benchmark. This RS is further refined using an exponential moving average (EMA) to smooth the results, providing a more stable trend overview.
3. Momentum Analysis: Momentum is determined by analyzing the rate of change in relative strength. The indicator calculates a momentum rank for each symbol, based on its relative strength’s improvement or deterioration.
4. Percentile Ranking System: Each symbol is assigned a percentile rank (from 1 to 100) based on its relative strength compared to the others. Similarly, momentum rankings are also assigned from 1 to 100, offering a clear understanding of which assets are outperforming or underperforming.
5. Visual Indicators:
a. Green: Signals improving or stable relative strength and momentum.
b. Red: Indicates declining relative strength or momentum.
c. Aqua: Highlights symbols performing well on both relative strength and momentum—ideal candidates for further analysis.
6. Two Clear Tables:
a. Relative Strength Rank Table: Displays weekly rankings of relative strength for each symbol.
b. Momentum Table: Shows momentum trends, helping you identify which symbols are gaining or losing strength.
7. Color-Coded for Easy Analysis: The tables are color-coded to make analysis quick and straightforward. A green color means the symbol is performing well in terms of relative strength or momentum, while red indicates weaker performance. Aqua marks symbols that are excelling in both areas.
Use Case:
a. Sector Comparison: Identify which sectors or indexes are showing both relative strength and momentum to pick high-potential stocks. This allows you to align with broader market trends for improved trade entries.
b. Stock Selection: Quickly compare symbols within the same sector to find the stronger performers. インジケーター
